36C03-400 Emerson Gas Valves Jackson Systems 10019

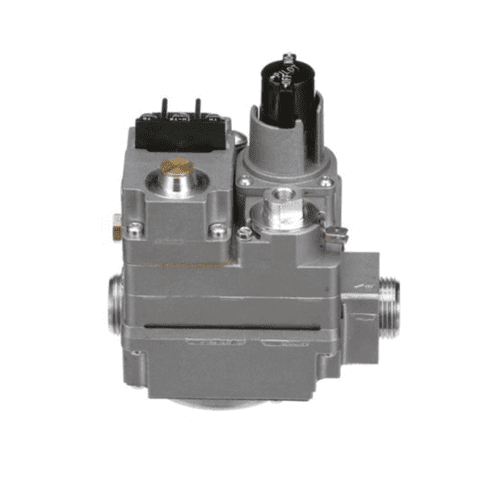

White-Rodgers 36C03-400 3/4in x 3/4in Gas Valve

Name: White-Rodgers 36C03-400 3/4in x 3/4in Gas Valve
SKU: 36C03-400
Price: 149.48 USD
Availability: InStock

BRAND: White-Rodgers SKU: 36C03-400

$149.48

MSRP: $334.98

You save 55%

3/4″ x 3/4″ Gas Valve, CSA Approved

Ships Tomorrow

Availability:

1 In Stock

Description

The White Rodgers 36C03-400 is a 3/4in x 3/4in Gas Valve designed to meet requirements for use on standing continuous pilot systems. 36C03 combination models include a pressure regulator, 100% shut-off automatic pilot, and main operator. 36C10 models do not have a pressure regulator.

Features

Line Interrupter styles use standard 30 mV Thermocouples.
Straight through design
Inlet/outlet reducer bushings
Mounting position upright, or 0° to 90°From upright in any direction.
CSA approved

Additional information

Fuel Type	Liquid Propane, Natural Gas
Pressure Tap Connection Size	1/8"
Ambient Temperature	-40?F to 175?F (-40?C to 79?C)
Pressure Tap Connection Type	NPT
Pilot Gas Outlet	1/4" compression fitting
Flow Direction	Straight Through
Operating Pressure	1/2 PSI Max, 14.0 W.C. Max
Voltage	24 VAC; 750 mV
Ignition Type	Standing Pilot
Regulator Opening Style	1 – Stage Fast Opening
Outlet Connection Size	3/4"
Inlet Connection Size	3/4"
Capacity	280,000 BTU/h Natural Gas; 453,600 BTU/h LP Gas
Amperage	0.23 Amps
Frequency	60 Hz
UPC	786710547706
