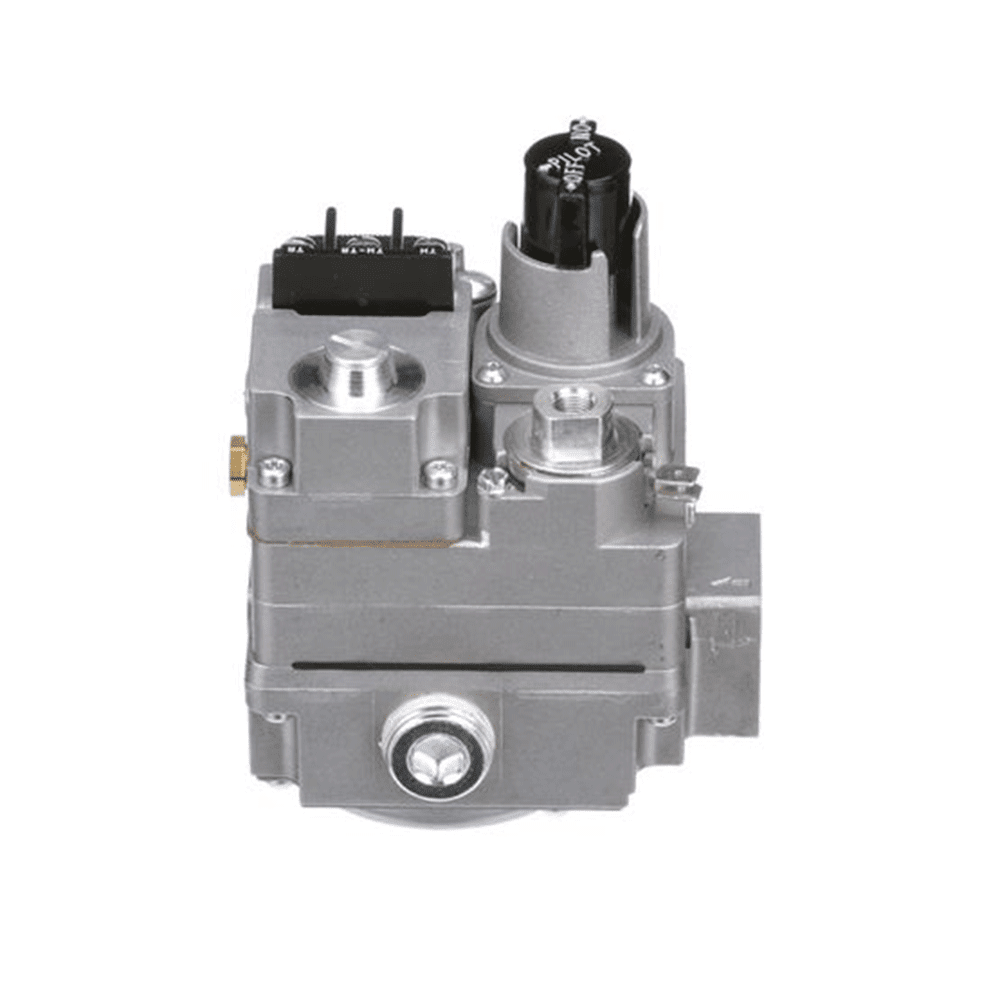

White-Rodgers 36C03-433 3/4in x 3/4in Universal Gas Valve

BRAND: White-Rodgers SKU: 36C03-433

$161.78

MSRP: $362.53
You save 55%

3/4″ x 3/4″ Universal Gas Valve, CSA Approved

Free Shipping
Ships Next Business Day
Availability:

1 In Stock

Description

The White-Rodgers 36C03-433 combination gas valve covers a wide range of applications and is designed for standing pilot systems, replacing hundreds of existing models in the field.

Features
  • Line Interrupter styles use standard 30 mV Thermocouples.
  • Straight through design with side taps
  • Inlet/outlet reducer bushings
  • Mounting position upright, or 0° to 90°From upright in any direction.
  • CSA approved

Additional information

Fuel Type

Liquid Propane, Natural Gas

Pressure Tap Connection Size

1/8"

Ambient Temperature

-40?F to 175?F (-40?C to 79?C)

Pressure Tap Connection Type

NPT

Pilot Gas Outlet

1/4" compression fitting

Flow Direction

Straight Through

Operating Pressure

1/2 PSI Max, 14.0 W.C. Max

Voltage

24 VAC; 750 mV

Ignition Type

Standing Pilot

Regulator Opening Style

1 – Stage Fast Opening

Outlet Connection Size

3/4"

Inlet Connection Size

3/4"

Capacity

280,000 BTU/h Natural Gas; 453,600 BTU/h LP Gas

Amperage

0.23 Amps

Frequency

60 Hz

UPC 786710547690
