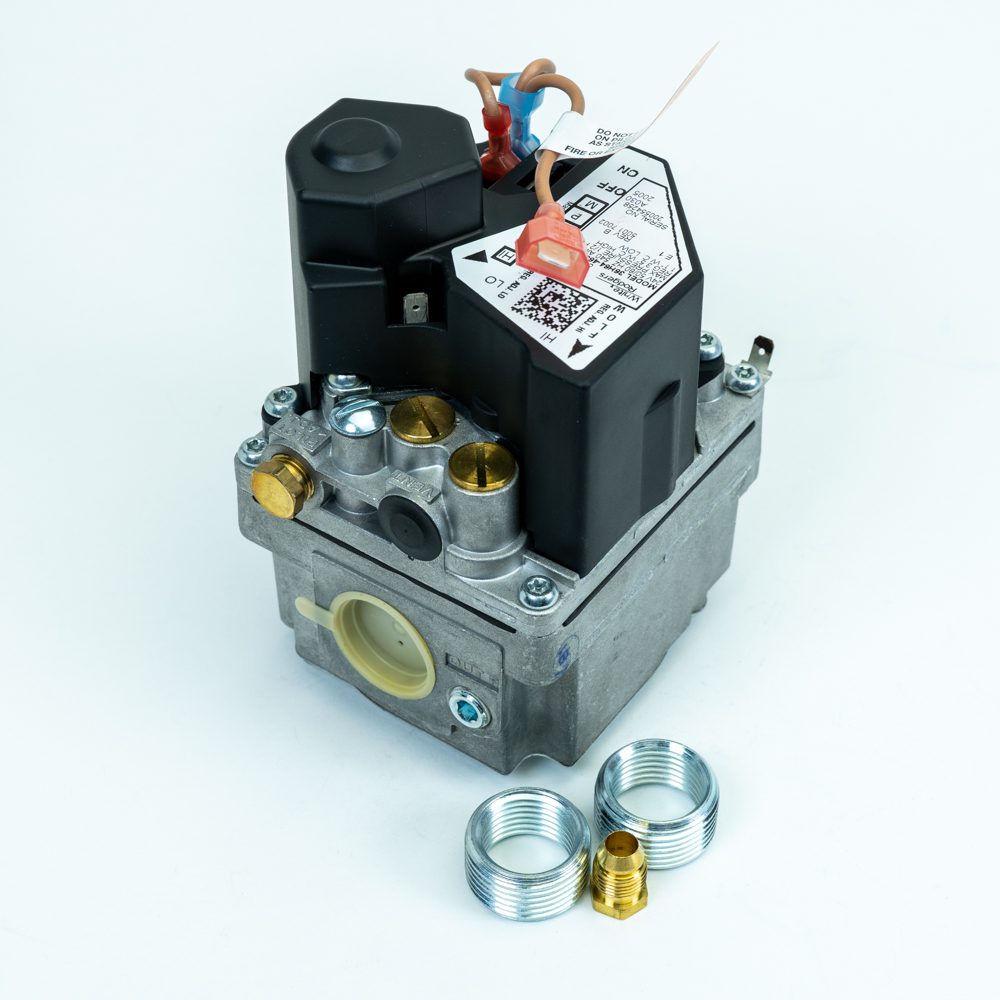

White-Rodgers 36H64-463 Universal Two-Stage Proven Pilot Gas Valve

BRAND: White-Rodgers SKU: 36H64-463

$200.45

MSRP: $449.18
You save 55%

Universal Two-Stage Proven Pilot Gas Valve

Free Shipping
Ships Next Business Day
Availability:

9 In Stock

Description

The White-Rodgers 36H64-463 Universal Two-Stage Proven Pilot Gas Valve is a versatile, combination gas control valve that is designed for use with Intermittent Ignition Systems (Direct Ignition and Proven Pilot). This 36H Gas Valve is the highest capacity combination gas valve created by White-Rodgers.

This 36H64-463 Universal Gas Valve is multi-purpose. When the Pilot Port is plugged in, it can be used for Hot Surface and Direct Spark Ignition Systems. If you remove the plug, it can be used for Intermittent and Proven Pilot Systems.

Features and Specifications

  • 24 Volt
  • 3/4in by 3/4in NPT
  • Fast Open, Two Sate
  • 1.4 Male Spade Quick Connect Terminals
  • Natural Gas and Includes LP Conversion Kit
  • Electric On-Off Switch
  • Tamper Resistant Screws
  • Controlled Gasket Compression for High Inlet Pressures
  • Upright Mounting Position or 0° to 90° from upright in any direction
  • CSA Approved

Replaces 36C76-406, 36C76-420, 36C76-462, 36C76-463 and Other Models

Additional information

Regulator Opening Style

Operating Pressure

,

Flow Direction

Outlet Connection Size

Fuel Type

,

Inlet Connection Size

Hertz

Capacity

Voltage

Ambient Temperature

UPC 786710547201
