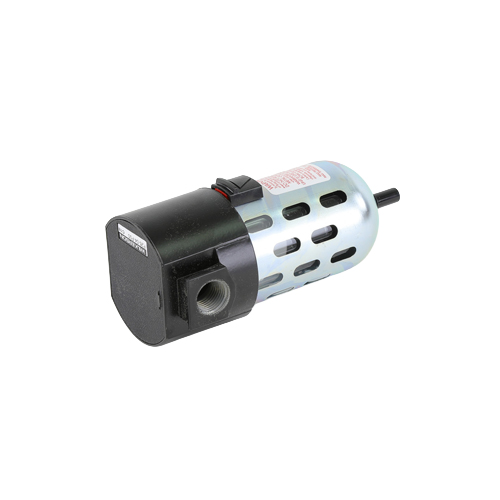

Wilkerson F26-04-F00 1/2″ NPT Particulate Filter, 5 Micron, Auto Drain

Description

Wilkerson F26-04-F00 Particulate Filter Overview

The Wilkerson F26-04-F00 is a high-performance compressed air particulate filter engineered for demanding industrial and commercial HVAC applications. Featuring a 1/2″ NPT port size, this filter delivers clean, contaminant-free air to downstream pneumatic equipment, protecting valves, actuators, and instrumentation from damaging particulates.

Key Features

• 1/2″ NPT port size for easy inline installation
• 5-micron polyethylene Type A filter element for effective particulate removal
• 149.8 SCFM flow capacity to support high-demand pneumatic systems
• 150 PSIG maximum supply pressure rating
• Polycarbonate bowl provides clear visual inspection of collected contaminants
• Bowl guard included for added protection against bowl damage
• Automatic drain for hands-free, continuous condensate removal

Performance Specifications

• Port Size: 1/2″ NPT
• Filter Element Type: 5-micron polyethylene, Type A
• Flow Capacity: 149.8 SCFM
• Maximum Supply Pressure: 150 PSIG
• Bowl Material: Polycarbonate with bowl guard
• Drain Type: Automatic

Application

Ideal for use in compressed air preparation systems within HVAC, pneumatic controls, and industrial automation environments. The automatic drain eliminates the need for manual intervention, reducing maintenance downtime and ensuring consistent air quality. The clear polycarbonate bowl allows technicians to monitor filter bowl conditions at a glance, while the included bowl guard protects against accidental impact in busy mechanical rooms.
