Description

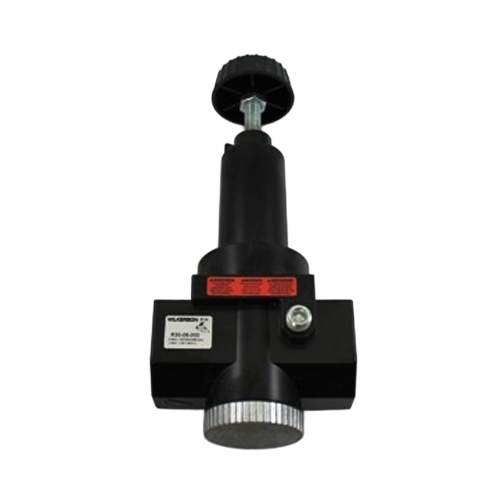

The Wilkerson R30-06-000 is a high-performance relieving-type compressed air pressure regulator engineered for demanding industrial and commercial pneumatic systems. Built with a durable zinc body, this regulator delivers precise, stable downstream pressure control while venting excess pressure when the downstream demand drops — a critical feature for protecting sensitive pneumatic equipment and instrumentation.
Key Features
- Relieving-type design automatically vents excess downstream pressure for safe, accurate pressure control
- Zinc body construction offers excellent corrosion resistance and long service life
- 3/4″ NPT port size accommodates high-flow industrial pneumatic lines
- Dual 1/4″ gauge ports allow simultaneous inlet and outlet pressure monitoring
- Wide adjustable pressure range suits a broad range of downstream equipment requirements
- High flow capacity minimizes pressure drop across the regulator
Specifications
- SKU: R30-06-000
- Port Size: 3/4″ NPT
- Body Material: Zinc
- Flow Capacity: 481 SCFM
- Maximum Supply Pressure: 300 PSIG
- Adjustable Output Pressure Range: 10–125 PSIG
- Gauge Ports: Two (2) x 1/4″ gauge ports
- Regulator Type: Relieving
Applications
- Industrial compressed air distribution systems
- Pneumatic control and automation equipment
- Air preparation systems requiring precise downstream pressure regulation
- Commercial HVAC pneumatic control circuits
- Process equipment requiring stable supply pressure
Why Choose the Wilkerson R30-06-000?
With a maximum supply pressure rating of 300 PSIG and an impressive 481 SCFM flow capacity, the R30-06-000 is well-suited for high-demand pneumatic applications where consistent pressure regulation is essential. The relieving design ensures that downstream pressure never exceeds the set point, even when flow demand changes suddenly. Dual 1/4″ gauge ports make it easy to monitor both supply and regulated pressures simultaneously, simplifying commissioning and troubleshooting.
