Description
Overview

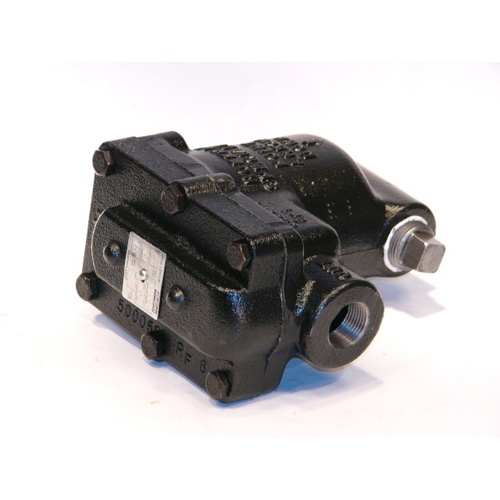

The Xylem-Hoffman Specialty Series B1 Inverted Bucket Steam Trap (Model B1030A-3, SKU 404328) is a rugged, dependable solution for steam distribution and condensate management in commercial and industrial HVAC systems. Built with a durable cast iron body, this trap leverages the proven inverted bucket operating principle to efficiently discharge condensate while preventing live steam loss — protecting your system efficiency and reducing energy waste.
Key Features
- Series B1 inverted bucket steam trap design for reliable, continuous condensate discharge
- Cast iron body construction for long-lasting durability in demanding steam system environments
- 3/4″ NPT inlet and outlet connections for straightforward installation into standard piping
- 30 PSI maximum operating pressure rating
- .187″ orifice size optimized for controlled condensate flow and steam retention
- Model B1030A-3 — a trusted Hoffman Specialty product backed by Xylem engineering
How Inverted Bucket Traps Work
The inverted bucket mechanism uses steam buoyancy to keep the bucket floating and the valve closed, retaining live steam in the system. When condensate enters, the bucket loses buoyancy and sinks, opening the valve to discharge condensate and non-condensable gases. This simple, mechanically robust design offers excellent resistance to water hammer and operates reliably across a wide range of load conditions.
Typical Applications
- Steam distribution mains and branch lines
- Unit heaters and heat exchangers
- Drip legs and steam tracer lines
- Industrial process heating systems
- Commercial boiler and hydronic steam systems
Specifications
- Brand: Xylem-Hoffman Specialty
- Model: B1030A-3
- SKU: 404328
- Series: B1
- Body Material: Cast Iron
- Connection Size: 3/4″ NPT
- Maximum Operating Pressure: 30 PSI
- Orifice Size: .187″
- Trap Type: Inverted Bucket
