Yellow Jacket 60994 Deluxe Mini-Split Tool Kit

Description

The Yellow Jacket Deluxe Mini-Split Tool Kit 60994 is designed for all mini-split refrigerants (R22/404A/410A), and takes the guesswork out of finding the right tool for the job.

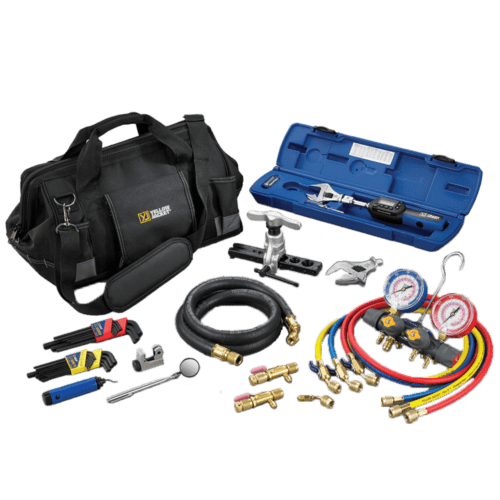

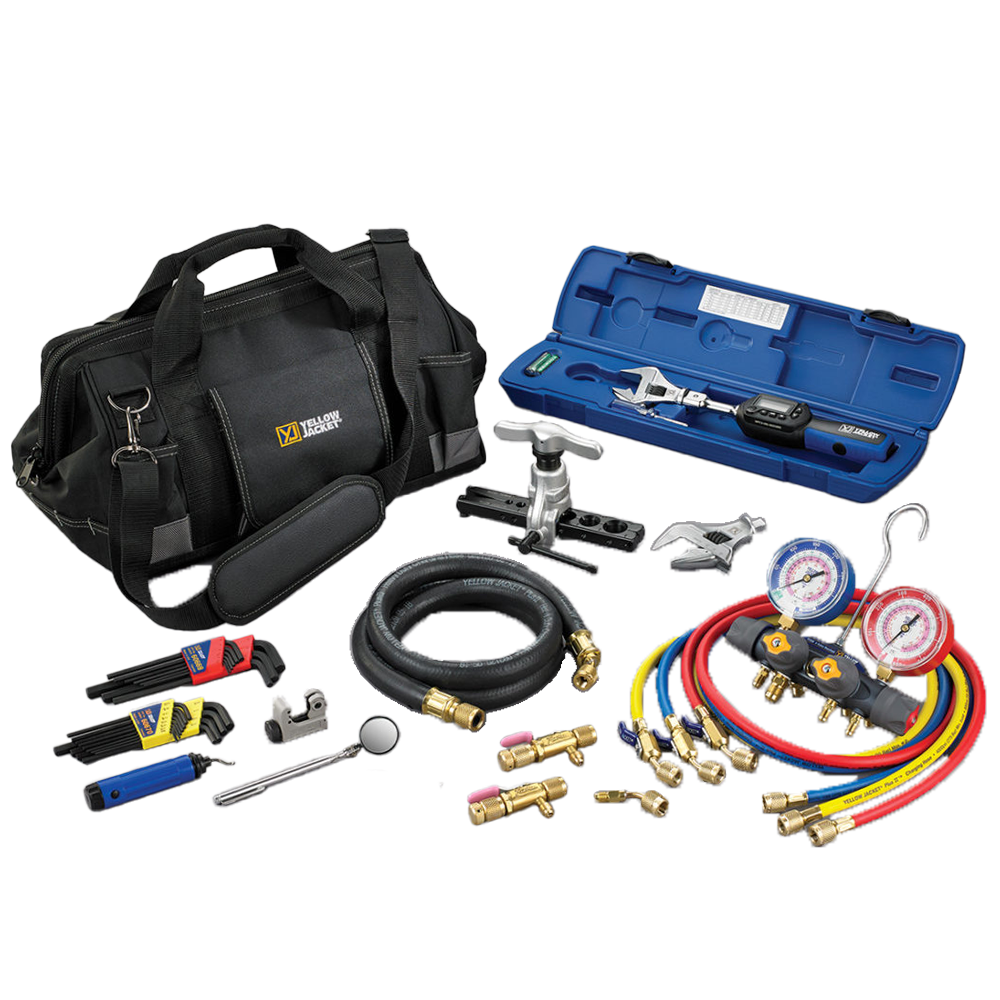

What's Included:

TITAN® 4-Valve Manifold (PN 49963):
• Designed to handle all mini-split refrigerants and pressures (including heating modes)

60” PLUS II™ Hoses (PN 29985):
• Rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure. (RYB) 1/4” with 1/4” compact ball valve x 1/4” flare fittings

Adjustable Digital Torque Wrench (PN 60648):
• Two adjustable spanner heads fit flare nut sizes .2” to 1.18” (5 to 30 mm PN 60647) and .39” to 1.61” (10 to 41 mm PN 60625), with a torque measuring range of 3.1 to 62.7 ft. lbs. (4.2 to 85 N-m)

Eccentric Cone Flare Tool (PN 60295):
• Creates high quality flares for 3/16” to 3/4” O.D. tubing

Imperial Hex Keys – 12 sizes (PN 60670):
• .05”, 1/16”, 5/64”, 3/32”, 7/64”, 1/8”, 9/64”, 5/32”, 3/16”, 7/32”, 1/4”, 5/16”

Metric Hex Keys – 9 sizes (PN 60669):
• 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm

Tube Cutter (PN 60121) and Deburring Tool (PN 60163)

1-1/4” Diameter Glass Mirror (PN 78098):
• Telescopic head with pocket clip

60” Heavy Duty Hose (PN 93891):
• 1/2” internal hose diameter creates full, quicker flow. Vacuum rated to 20 microns. Black hose, 3/8” x 5/16” flare fittings

Two Vacuum/Charge Valves with Side Port:
• 5/16” x 1/4” x 1/4” (PN 18986) • 5/16” x 5/16” x 5/16” (PN18985)

1/4” Male Flare x 5/16” Female Flare Adapter (PN 19173):
• With Schrader valve

10-Pack of Replacement Schrader Cores (PN 19305)

Tool Bag 16” (PN 60990):
• Durable nylon bag with strap with over 25 pockets
