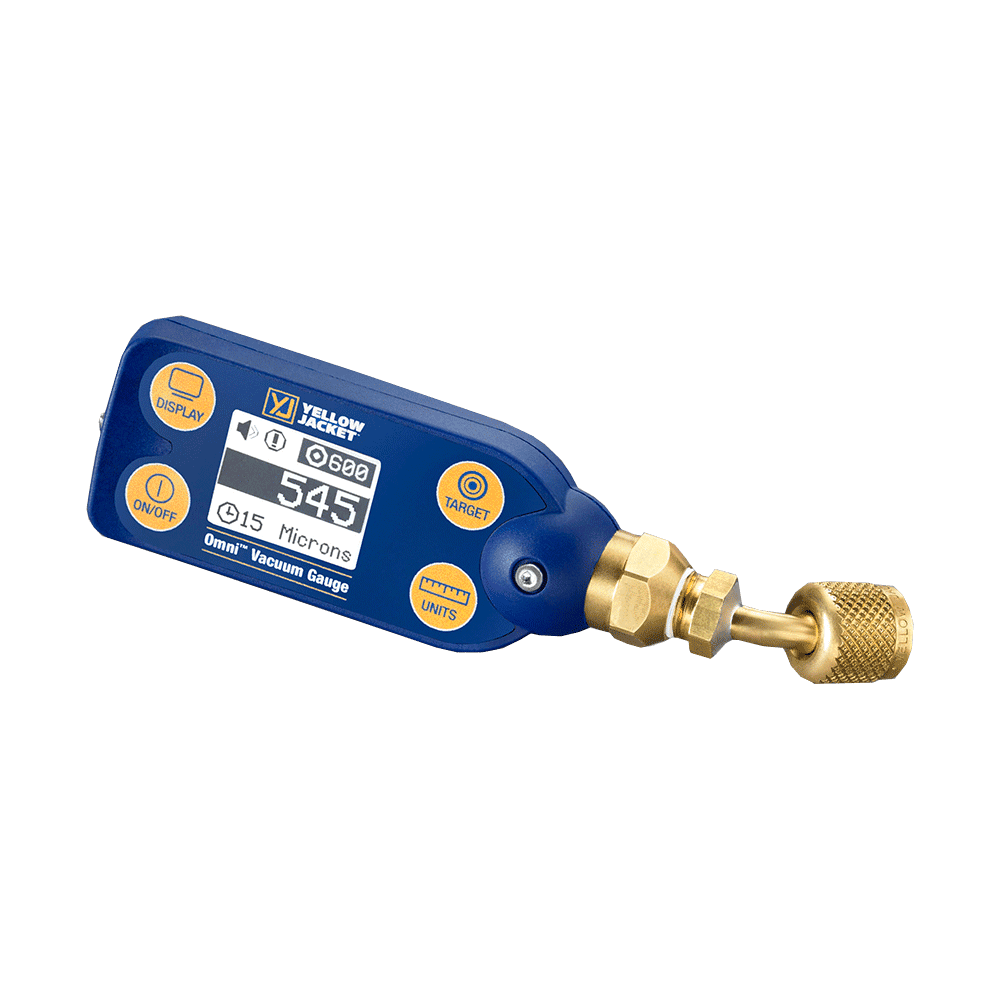

Yellow Jacket 69021 – Omni Digital Vacuum Gauge with 5/16" Coupler
The Yellow Jacket OMNI Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge that is loaded with features for the price. And it’s rugged, too. With a high impact housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr and Pascal).
Features
- Broad sensor range
- Visual signal when target vacuum level is reached
- Electronic paper display for clear visibility – even in direct sunlight
- Rich and intuitive user interface – turn it on and its ready to use with default settings
- 45° degree bend for fitting (1/4” or 5/16”)
- Automatic power down and time out
- Power savings – multiple time-out selections
- Low battery indicator and automatic power-down when inactive
- Adapter fittings available
- One year warranty
- Made in the USA
Vacuum Reading Resolution
- 1 micron (from 1,000 to 5 microns)
- 10 microns (from 10,000 to 1,000 microns)
- 100 microns (from 99,999 to 10,000 microns)
Display Vacuum Measurement Accuracy
- +/- 20% of reading (from 10,000 to 25 microns)
