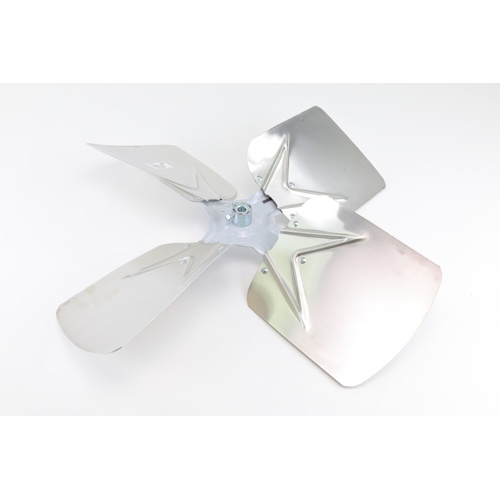

York S1-026-25558-000 24″ Dia., 32° Pitch, 4-Blade CW Fan Blade, 1/2″ Bore

Description

The York S1-026-25558-000 is an OEM replacement fan blade engineered for reliable, efficient airflow performance in York HVAC systems. Featuring a 24-inch diameter and a 32-degree blade pitch, this four-blade assembly is designed to move the precise volume of air required for optimal condenser or evaporator coil heat exchange. The clockwise (CW) rotation and 1/2-inch bore on the discharge side ensure a direct, drop-in fit for compatible York equipment, minimizing installation time and eliminating the guesswork of aftermarket alternatives.

Key Features

• OEM York replacement fan blade — part number S1-026-25558-000
• 24-inch blade diameter for high-volume airflow delivery
• 32-degree blade pitch optimized for efficient air movement
• 4-blade configuration for balanced, low-vibration operation
• Clockwise (CW) rotation as viewed from the discharge side
• 1/2-inch bore for secure motor shaft mounting on the discharge side
• Direct OEM replacement ensures proper fit and performance

Application

This fan blade is designed as a direct OEM replacement for York residential and light commercial HVAC equipment. It is ideal for service technicians and contractors performing condenser fan section repairs or maintenance on compatible York units. Always verify the model number and rotation direction of the existing fan blade before installation to ensure proper airflow direction and system performance.

Specifications

• Brand: York
• Part Number: S1-026-25558-000
• Blade Diameter: 24 inches
• Blade Pitch: 32 degrees
• Number of Blades: 4
• Rotation: Clockwise (CW)
• Bore Size: 1/2 inch
• Bore Location: Discharge side
