Description

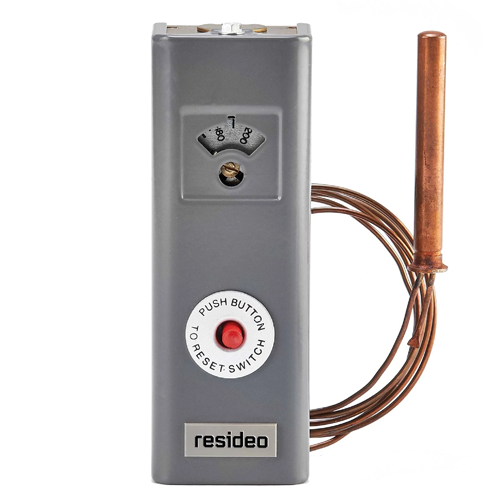

The Honeywell/Resideo L6008A1192 is a high-performance low-limit circulator aquastat designed for precise temperature regulation in hydronic heating systems. With an operating temperature range of 100°F to 240°F and an adjustable differential of 5°F to 30°F, this aquastat ensures optimal performance and energy efficiency.
Specifications:
- Application: Circulator Control, Low Limit
- Switch Action: SPDT
- Temperature Range (F): 100°F to 240°F
- Electrical Rating: 8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac
- Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
- Differential: 5° to 30°F, Adjustable
- Min Temp Differential: 5°F
- Max Temp Differential: 30°F
- Height: 5-5/8″
- Width: 2″
- Depth (Inches): 2-1/8″
- Max Ambient Temp (°F): 150°F
- Well Included: No
- Mount: Vertical, Horizontal
