Description

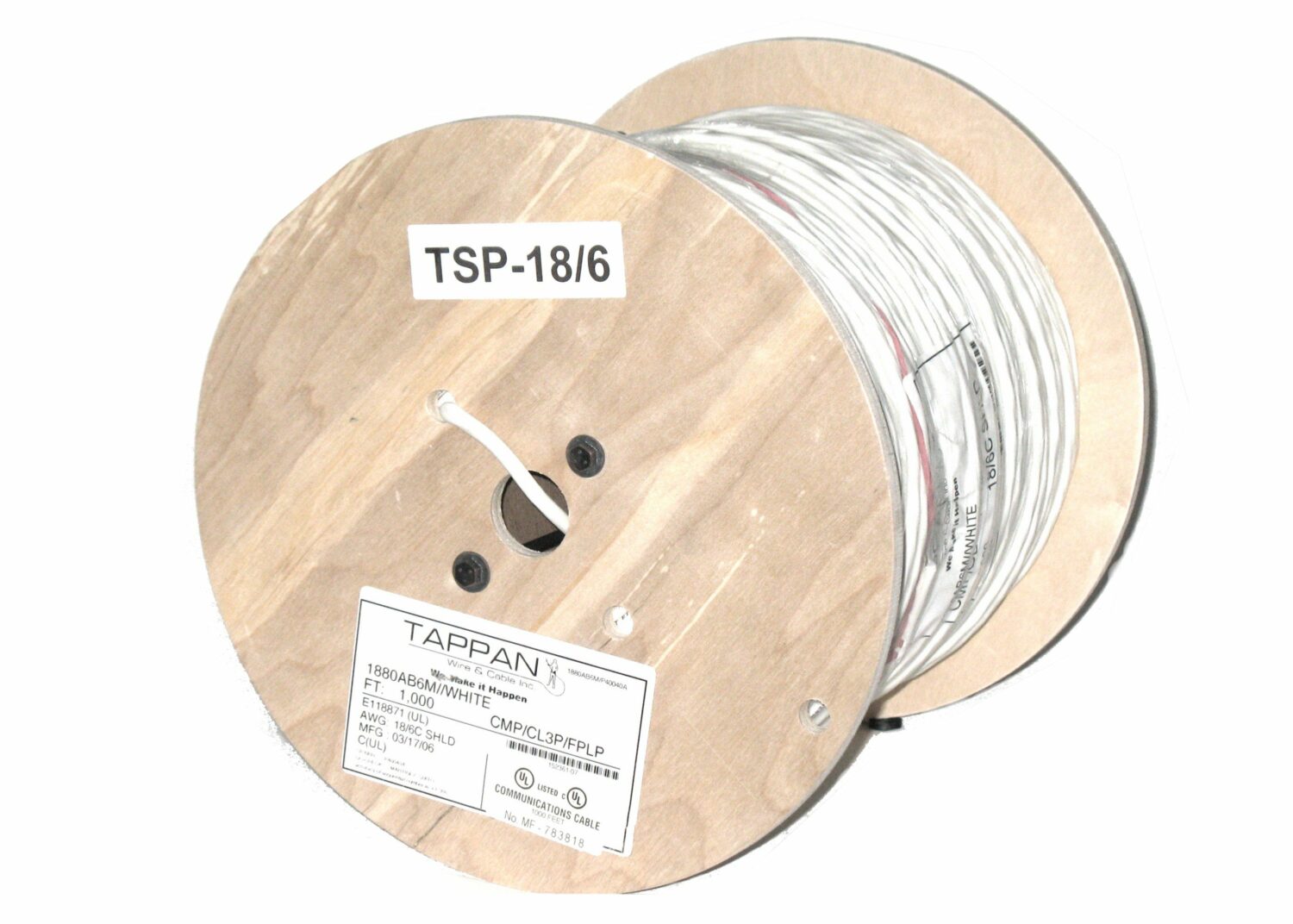

TSP-18/6 TWISTED, SHIELDED, PLENUM-RATED WIRE (1000' ROLL)
This 18/6 multi-conductor cable can be used for alarms, intercoms, speakers and other low voltage circuits that are power limited.
$479.99
18 AWG 6C Str Shielded Plenum, Natural, 1000ft Reel
1 In Stock
TSP-18/6 TWISTED, SHIELDED, PLENUM-RATED WIRE (1000' ROLL)
This 18/6 multi-conductor cable can be used for alarms, intercoms, speakers and other low voltage circuits that are power limited.
Temperature | -20?C to 75?C |
---|---|
Conductor Count | 6 |
Impedance | 41 Ohms nom. |
Capacitance | 32.2 pF/ft. nom. |
DC Resistance | 6.66 Ohms/1000ft at 20?C |
Operating Voltage | 300 Volts Max |
Outside Diameter | 0.216" Nominal |
Conductors | 18 AWG 19 Strand Bare Copper |
Wire Length | 1000ft |
Plenum Rated | Yes |
Gauge | 18 AWG |
