Description

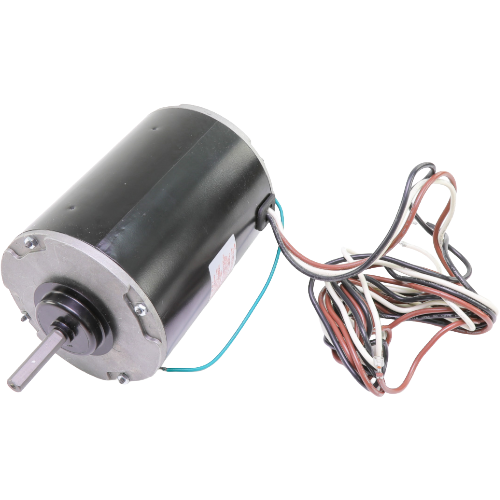

The Century OAN460 is a dependable single-speed condenser fan motor engineered for reliable performance in residential and light commercial HVAC applications. Designed as a direct replacement or upgrade motor, it delivers consistent airflow management in condensing units where precision and durability are essential.
Motor Specifications
- Horsepower: 3/4 HP
- Speed: 1075 RPM
- Number of Speeds: 1
- Voltage: 208–230V AC
- Amperage: 5.4 Amps
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Shaft: 3″ x 1/2″ diameter
- Motor Diameter: 5 5/8″
Key Features
- Single-speed operation for straightforward, reliable performance
- CCWLE rotation for proper condenser fan airflow direction
- 208–230V dual-voltage compatibility for flexible installation
- Compact 5 5/8″ frame diameter fits standard condenser fan applications
- 3″ x 1/2″ shaft accommodates common fan blade hubs
- Built by Century Motors, a trusted name in HVAC motor manufacturing
Application
The OAN460 is ideally suited for condenser fan duty in split-system air conditioners and heat pumps. Its CCWLE rotation and 1075 RPM speed rating make it a go-to replacement motor for a wide range of OEM condensing units. The 208–230V rating ensures compatibility with standard residential and light commercial power supplies.
