Description

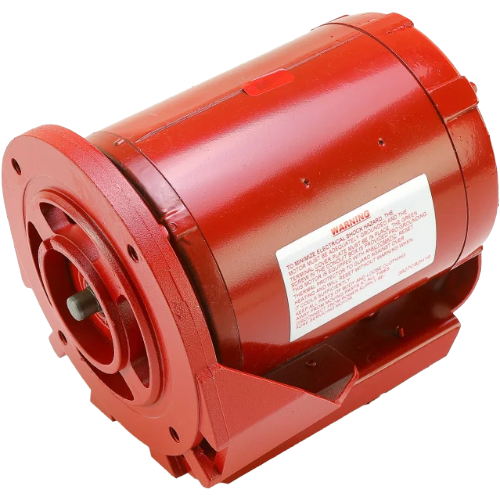

The Century HW2034BL is a dependable single-phase general purpose motor engineered for demanding HVAC and light commercial applications. Rated at 1/3 horsepower and 1725 RPM, this motor delivers consistent, efficient performance in a compact 48Z frame footprint. With a 1.30 service factor, it handles occasional overload conditions without compromising longevity, making it an ideal choice for fans, blowers, pumps, and other motor-driven HVAC equipment.
Built with ball bearings for reduced friction and extended service life, the HW2034BL features a dripproof enclosure that protects internal windings from dripping liquids and airborne contaminants. An automatic thermal protector safeguards the motor against overheating, while the included base simplifies mounting and reduces installation time. The 1/2″ x 1/2″ set screw shaft ensures a secure, vibration-resistant connection to driven loads.
Key Specifications
- Horsepower: 1/3 HP
- Speed: 1725 RPM
- Voltage: 115V AC
- Amperage: 5.7 Amps
- Service Factor: 1.30
- Frame: 48Z
- Phase: Single Phase
- Shaft: 1/2″ x 1/2″ Set Screw
- Rotation: Clockwise (CW)
- Bearings: Ball Bearings
- Enclosure: Dripproof
- Protector: Automatic Thermal Protector
- Base: Included
Features & Benefits
- Ball bearings provide smooth, low-friction operation and extended motor life
- Dripproof enclosure protects windings from moisture and debris in typical HVAC environments
- 1.30 service factor allows for intermittent overload operation without damage
- Automatic thermal protector shuts down the motor if operating temperatures become unsafe
- 48Z frame design ensures broad cross-compatibility with standard HVAC equipment
- Mounting base included for faster, easier installation
- Set screw shaft connection delivers a secure, vibration-resistant coupling to driven loads
Common Applications
- HVAC blowers and fan assemblies
- Circulation pumps
- Light commercial and residential air handling equipment
- General purpose motor-driven loads requiring 1/3 HP at 1725 RPM
