Description

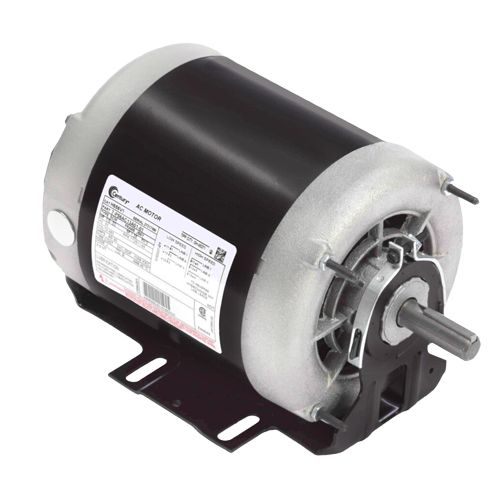

The Century H656V1 is a heavy-duty, two-speed, three-phase motor engineered for demanding HVAC and commercial applications where variable airflow or load control is essential. Designed for reliability and long service life, this motor delivers proven performance across a wide range of installations.
Electrical Specifications
- Voltage: 460 VAC
- Phase: Three Phase
- Horsepower: 1/2 – 0.22 HP (High/Low Speed)
- Speed: 1725 / 1140 RPM (2-Speed)
- Amperage: 0.95 – 0.60 Amps (High/Low Speed)
Mechanical Specifications
- NEMA Frame Size: J56Y
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Resilient Base
- Shaft Dimensions: 5/8″ diameter x 1 7/8″ length
- Rotation: Reversible
Key Features & Benefits
- Two-speed operation allows for high and low airflow or load settings, improving system efficiency and comfort control
- Three-phase power delivery provides smooth, consistent torque and reduced electrical noise
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments
- Ball bearing construction minimizes friction and wear for extended motor life with reduced maintenance
- Resilient base mounting helps absorb vibration and reduce noise transmission to the surrounding structure
- Reversible rotation offers installation flexibility to suit a variety of application configurations
- J56Y NEMA frame ensures compatibility with standard motor mounting brackets and equipment
Typical Applications
- Commercial HVAC fan and blower systems
- Two-speed fan coil units
- Evaporative coolers
- Air handling units requiring multi-speed operation
- General-purpose industrial and commercial motor applications
The Century H656V1 is a dependable choice for HVAC professionals and contractors seeking a versatile, multi-speed motor with robust construction and straightforward installation.
