Description

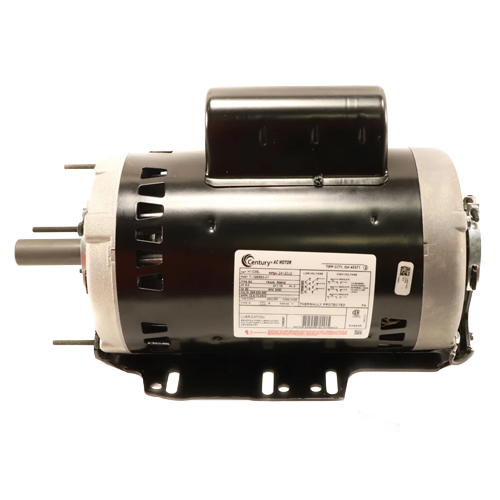

The Century H1039L is a heavy-duty, three-phase general purpose motor engineered for demanding HVAC and industrial applications. Delivering 5 horsepower at 3450 RPM, this motor is built to handle high-speed loads with consistent, reliable performance.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 3450 RPM, 1 Speed
- Amperage: 13.4 / 13.2 / 6.6 Amps
Mechanical Specifications
- Horsepower: 5 HP
- NEMA Frame Size: R56HZ
- Shaft Size: 7/8″ diameter x 2 5/16″ length
- Rotation: Reversible
- Mounting: Resilient Base
- Bearing Type: Ball Bearing
- Enclosure: Open Drip Proof (ODP)
Key Features
- Open Drip Proof (ODP) enclosure protects against dripping liquids and falling debris in standard indoor environments
- Ball bearings provide smooth, low-friction operation and extended service life
- Resilient base mounting reduces vibration transmission to connected equipment and structures
- Reversible rotation offers installation flexibility for a wide range of applications
- Dual-voltage design (208-230/460V) accommodates various three-phase power configurations
- R56HZ NEMA frame ensures dimensional compatibility with standard motor mounts and couplings
Applications
The Century H1039L is well-suited for use in commercial HVAC systems, air handling units, pumps, compressors, and other motor-driven equipment requiring a reliable three-phase power source. Its resilient base and reversible rotation make it a versatile drop-in solution for replacement and new installations alike.
