Description

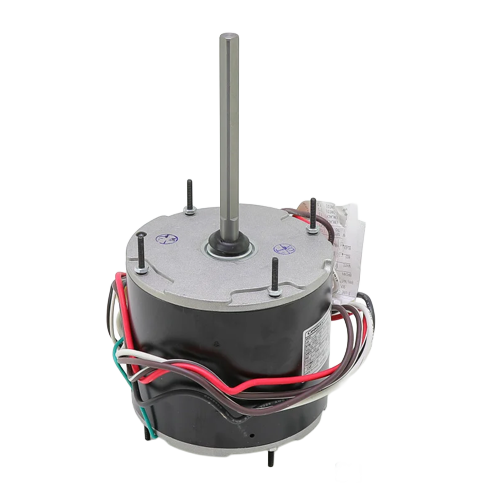

The Century FSE6000 is a versatile, multi-horsepower permanent split capacitor (PSC) fan motor engineered for reliable performance in a wide range of HVAC air-over applications. Its multi-HP design gives technicians and contractors the flexibility to replace several different motor ratings with a single stocked unit, reducing downtime and inventory costs.
Motor Overview
Built on the industry-standard 48 frame, the FSE6000 features a totally enclosed, air-over (TEAO) construction that protects internal components from dust and debris while relying on the airstream of the fan for cooling. The motor’s permanent split capacitor design delivers smooth, efficient starting and quiet operation — ideal for residential and light-commercial fan applications.
Electrical Specifications
- Horsepower: 1/3 HP, 1/4 HP, 1/5 HP, or 1/6 HP (multi-HP)
- Voltage: 120/230V AC
- Amperage: 1.5–2.8 Amps
- Phase: Single Phase
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1075–1135 RPM
- Frame: 48 Frame
- Shaft: 1/2″ diameter x 6″ length
- Motor Diameter: 5-5/8″
- Bearings: Sleeve bearings
- Enclosure: Totally Enclosed Air Over (TEAO)
- Rotation: Reversible
Features & Benefits
- Multi-HP rating (1/3, 1/4, 1/5, 1/6 HP) simplifies replacement and reduces inventory
- Reversible rotation for flexible installation in multiple configurations
- Automatic thermal overload protector for built-in motor protection
- Totally enclosed, air-over construction shields motor from contaminants
- Sleeve bearings provide quiet, smooth operation
- Standard 48 frame for broad OEM and aftermarket compatibility
- Long 1/2″ x 6″ shaft accommodates a variety of fan blade and blower wheel configurations
Typical Applications
- Condenser fan and evaporator fan replacement
- Window and through-wall air conditioner fans
- Residential and light-commercial HVAC equipment
- OEM fan motor replacement across multiple equipment brands
