Description

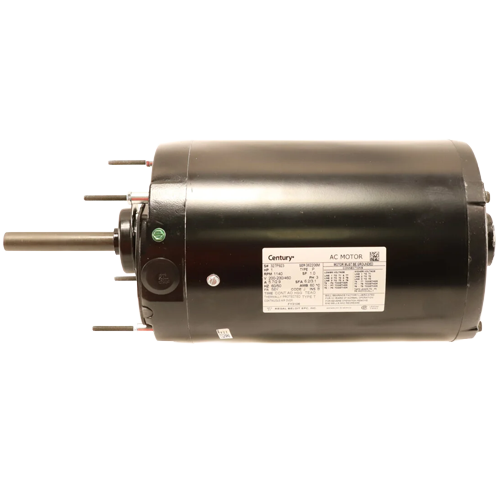

The Century FY3106 is a heavy-duty, three-phase electric motor engineered for demanding HVAC and industrial air-movement applications. Built around a Totally Enclosed Air Over (TEAO) design, this motor is purpose-built for use in airstreams — such as condenser fans and evaporator fans — where the motor body is cooled by the airflow it drives rather than an internal fan.
Key Specifications
- Horsepower: 1 HP
- Voltage: 200-230/460 VAC (dual-voltage, three-phase)
- Amperage: 5.7 A (low voltage) / 2.9 A (high voltage)
- Speed: 1140 RPM
- NEMA Frame: 56Y
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 4″ length
- Rotation: Reversible
- Phase: Three-Phase
Design & Construction
The 56Y NEMA frame provides a standardized mounting footprint for straightforward drop-in replacement or new installations. Ball bearings deliver long service life and reliable performance under continuous-duty operating conditions. The dual-voltage wiring configuration (200-230/460V) offers installation flexibility across a wide range of commercial and industrial electrical systems.
Application Highlights
- Ideal for condenser fans, evaporator fans, and other forced-air HVAC equipment
- Reversible rotation allows flexible installation orientation
- TEAO enclosure protects internal components while leveraging external airflow for cooling
- Three-phase power for smooth, efficient operation in commercial settings
- Ball bearing construction supports high-cycle, continuous-duty use
Why Choose the Century FY3106?
Century Motors has long been a trusted name in HVAC motor manufacturing. The FY3106 combines proven motor technology with a versatile dual-voltage design and reversible rotation, making it an excellent choice for OEM replacement and new equipment installations alike. Its TEAO enclosure and ball bearing construction minimize maintenance requirements and maximize uptime in commercial HVAC environments.
