Description

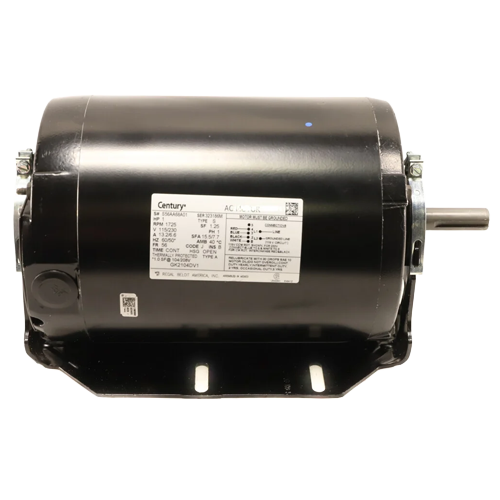

The Century GK2104DV1 is a reliable, general-purpose split phase motor engineered for demanding HVAC and light industrial applications. Built around a rugged 56 NEMA frame, this motor delivers consistent 1 HP output at 1725 RPM, making it a dependable choice for fans, blowers, pumps, and other single-speed equipment.
Electrical Specifications
- Voltage: 115/230 VAC
- Phase: Single Phase
- Amperage: 15.5 A (115V) / 7.7 A (230V)
- Motor Type: Split Phase
Mechanical Specifications
- Horsepower: 1 HP
- Speed: 1725 RPM
- Number of Speeds: 1
- NEMA Frame Size: 56
- Shaft Size: 1/2″ diameter x 1-1/2″ length
- Bearing Type: Sleeve Bearing
- Mount Type: Resilient Base
- Rotation: Reversible
Enclosure & Protection
- Enclosure Type: Open Drip Proof (ODP)
Key Features & Benefits
- Dual-voltage (115/230V) design offers flexible installation in a wide range of electrical configurations
- Reversible rotation allows for versatile mounting and airflow direction options
- Open Drip Proof enclosure protects internal components from dripping liquids in standard indoor environments
- Resilient base mount minimizes vibration transmission and reduces noise during operation
- Sleeve bearing construction provides smooth, quiet operation with low maintenance requirements
- Standard 56 NEMA frame ensures broad cross-reference compatibility and easy drop-in replacement
- 1/2″ x 1-1/2″ shaft accommodates a wide variety of couplings, pulleys, and drive components
Typical Applications
- HVAC blowers and fans
- Light-duty pumps
- Air handling equipment
- General-purpose industrial machinery
