Description

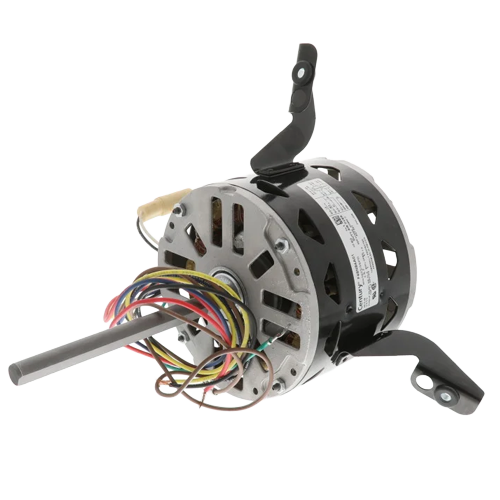

The Century FML1026 is a high-quality Permanent Split Capacitor (PSC) fan motor engineered for reliable performance in residential and light commercial HVAC applications. Designed as a direct replacement or upgrade motor, it delivers consistent airflow across three speed settings while offering the flexibility of reversible rotation — making it adaptable to a wide range of system configurations.
Key Features
- Permanent Split Capacitor (PSC) motor design for efficient, quiet operation
- Three-speed operation for flexible airflow control
- Reversible rotation to accommodate varied installation requirements
- Open air construction for natural ventilation and heat dissipation
- Sleeve bearing design for smooth, low-maintenance performance
- 48Y NEMA frame size for broad OEM compatibility
- 1/2″ x 6″ shaft for secure and versatile mounting
Electrical Specifications
- Horsepower: 1/4 HP
- Voltage: 115 VAC
- Phase: Single Phase
- Amperage: 3.5 Amps
- Speed: 1075 RPM
- Number of Speeds: 3
Mechanical Specifications
- NEMA Frame Size: 48Y
- Bearing Type: Sleeve Bearing
- Enclosure: Open Air
- Shaft Size: 1/2″ diameter x 6″ length
- Rotation: Reversible
Applications
The Century FML1026 is well-suited for use in furnace air handlers, evaporator coil fan assemblies, and other HVAC blower systems requiring a dependable multi-speed PSC motor. Its 48Y NEMA frame and standard shaft dimensions make it a versatile drop-in replacement across many OEM platforms.
