Description

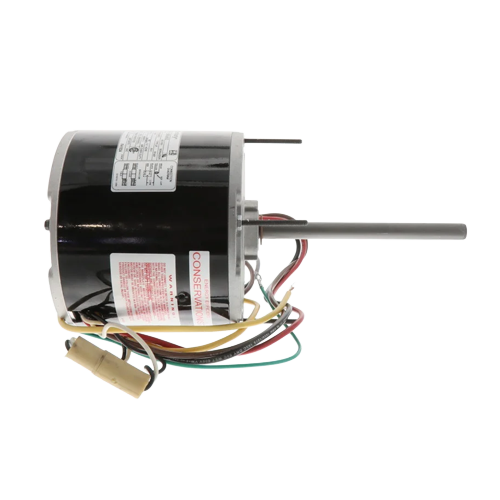

The Century FH1024 is a high-quality Permanent Split Capacitor (PSC) motor engineered for reliable performance in a wide range of HVAC fan and blower applications. Built to exacting standards, this motor delivers dependable, energy-efficient operation in commercial and light-industrial environments.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 460 VAC
- Phase: Single Phase
- Speed: 1625 RPM (2-Speed)
- Amperage: 0.9 Amps
- NEMA Frame: 48Y
- Enclosure: Semi-Enclosed
- Bearing Type: Ball Bearing
- Shaft Size: 1/2″ diameter x 6-1/2″ length
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Product Highlights
- Two-speed operation provides flexible airflow control to match varying system demands
- Reversible rotation allows for versatile installation configurations
- Ball bearing construction ensures long service life and reduced maintenance requirements
- Semi-enclosed design protects internal components from dust and debris in typical HVAC environments
- Standard 48Y NEMA frame for straightforward drop-in replacement compatibility
- PSC motor design delivers smooth, quiet operation and improved energy efficiency over shaded-pole alternatives
- Long 6-1/2″ shaft accommodates a variety of fan blade and blower wheel configurations
Applications
The Century FH1024 is well-suited for use in fan coil units, evaporator coils, condenser fans, and other HVAC air-moving equipment requiring a compact, dependable single-phase motor. Its 460V rating makes it an ideal choice for commercial systems operating on higher-voltage circuits.
Why Choose Century Motors?
Century Motors has been a trusted name in the HVAC industry for decades, delivering motors that meet or exceed OEM specifications. The FH1024 continues that tradition, offering contractors and technicians a reliable, direct-replacement solution backed by proven engineering.
