Description

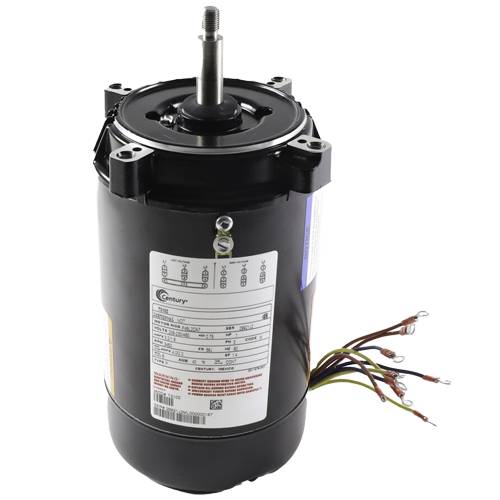

The Century T3102 is a heavy-duty three-phase motor engineered for reliable, continuous-duty performance in demanding commercial and industrial HVAC applications. Built around a 56J frame with a NEMA C face mounting configuration and threaded shaft, this motor integrates seamlessly with pumps, compressors, fans, and other direct-coupled equipment.
Key Specifications
- Horsepower: 1 HP
- Speed: 3450 RPM
- Voltage: 208-230/460 VAC
- Amperage: 4.0 / 2.0 Amps
- Service Factor: 1.40
- Thermal Horsepower (THP): 1.4
- Frame: 56J
- Shaft Type: Threaded
- Phases: Three Phase
- Enclosure: Open Dripproof (ODP)
- Bearings: Ball Bearings
- Duty: Continuous
- Protector: None
- Mounting: NEMA C Face
- Wiring: Internal Junction Box
Features & Benefits
- Dual-voltage capability (208-230/460V) provides installation flexibility across a wide range of electrical systems
- NEMA C face with threaded shaft enables direct coupling to pumps and other driven equipment without additional adapters
- Ball bearing construction delivers smooth, low-friction operation and extended service life
- Open dripproof enclosure allows for efficient motor cooling while protecting internal components from dripping liquids in non-hazardous environments
- 1.40 service factor provides a built-in overload margin for applications with occasional peak demands
- Internal junction box simplifies field wiring and voltage selection
- Continuous duty rating ensures dependable, around-the-clock operation
- 56J frame conforms to NEMA dimensional standards for easy replacement and cross-referencing
Typical Applications
- Commercial HVAC pump drives
- Compressor applications
- Fan and blower systems
- Industrial process equipment
