Description

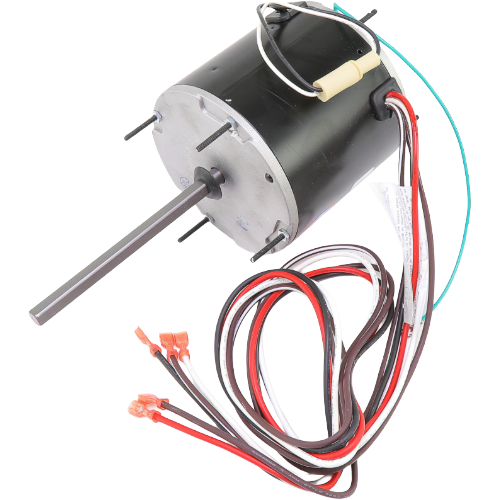

The Century FE6001F is a versatile, multi-horsepower Permanent Split Capacitor (PSC) fan motor engineered for reliable performance across a wide range of HVAC fan applications. With selectable horsepower ratings and reversible rotation, this motor offers the flexibility technicians need to handle multiple service scenarios with a single part.
Key Features
- Multi-horsepower output: 1/3 HP, 1/4 HP, 1/5 HP, and 1/6 HP selectable
- Permanent Split Capacitor (PSC) motor design for smooth, efficient operation
- 825 RPM operating speed for quiet, low-speed fan applications
- 208–230V AC input voltage for compatibility with standard commercial and residential systems
- 1.0–1.9 amp current draw range across horsepower settings
- Ball bearing construction for long service life and reduced maintenance
- Reversible rotation to accommodate varied installation orientations
- 5-5/8″ motor diameter fits standard NEMA 48-frame mounting configurations
- 48″ leads provide generous wiring reach for flexible installation
- Extended thru bolts included for secure mounting
Motor Specifications
- SKU: FE6001F
- Brand: Century
- Horsepower: 1/3, 1/4, 1/5, 1/6 HP (multi-HP)
- Speed: 825 RPM
- Voltage: 208–230V AC
- Amperage: 1.0–1.9 A
- Motor Diameter: 5-5/8″
- Lead Length: 48″
- Bearing Type: Ball Bearings
- Motor Type: Permanent Split Capacitor (PSC)
- Rotation: Reversible
- Mounting: Extended Thru Bolts
Applications
The Century FE6001F is ideal for use in evaporator fan motors, condenser fan motors, and general HVAC blower applications where low-speed, multi-horsepower flexibility is required. Its reversible rotation and extended thru bolts make it a go-to replacement motor for service technicians working across a variety of equipment brands and configurations.
