Description

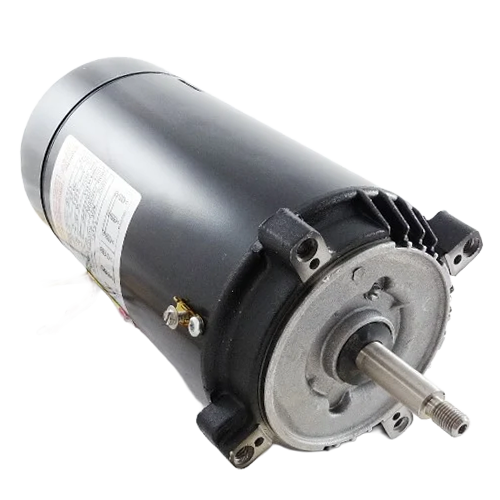

The Century T3152 is a heavy-duty three-phase pump motor engineered for reliable, continuous-duty performance in demanding commercial and industrial HVAC and pumping applications. Built around a 56J NEMA frame, this motor delivers the precise mounting compatibility and mechanical integrity required for direct pump coupling.
Motor Overview
Designed as a drop-in replacement or new-installation pump motor, the T3152 features an Open Drip Proof (ODP) enclosure that allows air circulation for cooling while protecting internal components from dripping liquids — ideal for indoor mechanical room environments. The threaded shaft and counter-clockwise (CCW) rotation at the pump end ensure proper interface with standard pump assemblies.
Key Specifications
- Horsepower: 1-1/2 HP
- Voltage: 208-230/460 VAC (dual voltage)
- Phase: Three Phase
- Speed: 3450 RPM
- Full Load Amps: 6.8 A (208-230V) / 3.4 A (460V)
- NEMA Frame: 56J
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Shaft Type: Threaded Shaft
- Rotation: Counter-Clockwise (CCW) at Pump End
Features & Benefits
- Dual voltage (208-230/460V) provides installation flexibility across a wide range of commercial electrical systems
- Ball bearings deliver long service life with reduced friction and maintenance requirements
- 56J NEMA frame ensures broad compatibility with standard pump bases and mounting configurations
- ODP enclosure promotes effective motor cooling in protected indoor environments
- Threaded shaft provides secure, vibration-resistant pump coupling
- CCW pump-end rotation matches the directional requirements of most centrifugal pump assemblies
- 3450 RPM high-speed operation suits applications requiring strong flow rates and system pressure
Typical Applications
- Hydronic heating and cooling circulating pumps
- Commercial HVAC chilled and hot water systems
- Industrial pump replacement and retrofit installations
- Water supply and pressure booster systems
