Description

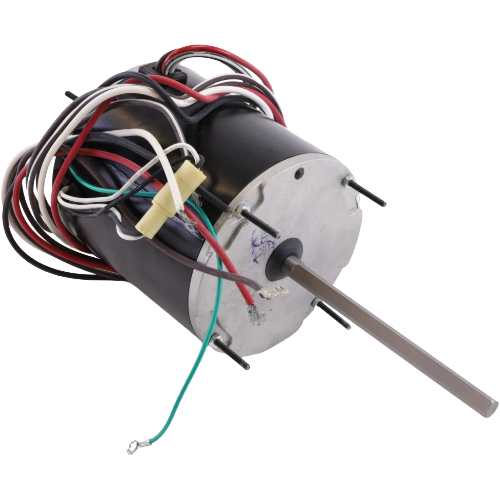

The Century FE6004F is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for dependable performance in demanding HVAC fan and blower applications. Built to NEMA 48 frame standards, this enclosed motor is designed to withstand harsh operating environments while delivering efficient, two-speed operation.
Key Features
- Dual horsepower ratings: 3/4 HP (high speed) and 1/3 HP (low speed) for flexible airflow control
- 208–230 VAC single-phase power supply for broad compatibility
- 1075 RPM operating speed for quiet, efficient fan and blower duty
- Two-speed operation allows precise system performance tuning
- 5.6–2.4 amp draw (high/low speed) for energy-conscious operation
- Permanent Split Capacitor (PSC) design for smooth, reliable starting and running
- Reversible rotation for versatile installation configurations
- Enclosed motor construction protects internal components from dust and debris
- Ball bearing design ensures long service life and reduced maintenance
- 1/2″ x 6-1/2″ shaft for compatibility with a wide range of fan blades and pulleys
- NEMA 48 frame size for standardized mounting and easy replacement
Specifications
- SKU: FE6004F
- Brand: Century
- Horsepower: 3/4–1/3 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 1075 RPM, 2-Speed
- Amperage: 5.6–2.4 Amps
- Frame: NEMA 48
- Enclosure: Enclosed
- Bearing Type: Ball Bearing
- Shaft Size: 1/2″ x 6-1/2″
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Applications
- Condenser fan motors
- Evaporator fan motors
- HVAC blower assemblies
- Commercial and residential air handling equipment
- Fan coil units requiring two-speed airflow control
