Description

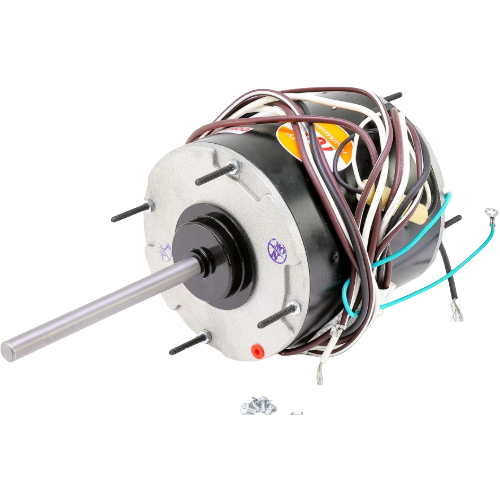

The Century FE1058SF is a reliable, totally enclosed permanent split capacitor (PSC) fan motor engineered for demanding HVAC applications. With a robust 1/2 HP output and a quiet 825 RPM operating speed, this motor delivers consistent, efficient airflow performance in condenser fan, evaporator fan, and general-purpose ventilation applications.
Electrical Specifications
- Voltage: 208–230V AC
- Horsepower: 1/2 HP
- Speed: 825 RPM, 1 Speed
- Amperage: 2.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Motor Diameter: 5-5/8″
- Shaft: 1/2″ Flatted Shaft
- Bearings: Ball Bearings for long service life and reduced friction
- Enclosure: Totally Enclosed for protection against dust and moisture
- Rotation: Reversible — easily configured for CW or CCW airflow direction
- Mounting: All-Angle Mount for maximum installation flexibility
- Protector: Auto Protector for built-in thermal overload protection
Key Features & Benefits
- Totally enclosed construction shields internal windings from contaminants, extending motor life in harsh environments
- Ball bearing design minimizes friction and wear, reducing maintenance requirements
- Reversible rotation allows a single motor to serve multiple installation configurations
- All-angle mounting capability simplifies installation in tight or unconventional equipment layouts
- Auto protector provides automatic thermal overload protection, safeguarding the motor against burnout
- PSC design delivers smooth, efficient starting and running performance without the need for a start capacitor
Common Applications
- Condenser fan motor replacement
- Evaporator fan motor replacement
- General-purpose HVAC ventilation fans
- Commercial refrigeration fan applications
The Century FE1058SF is a dependable OEM-quality replacement motor built to Century’s exacting standards. Its combination of totally enclosed construction, ball bearings, reversible rotation, and all-angle mounting makes it a versatile solution for HVAC technicians and contractors seeking a long-lasting, low-maintenance motor.
