Description

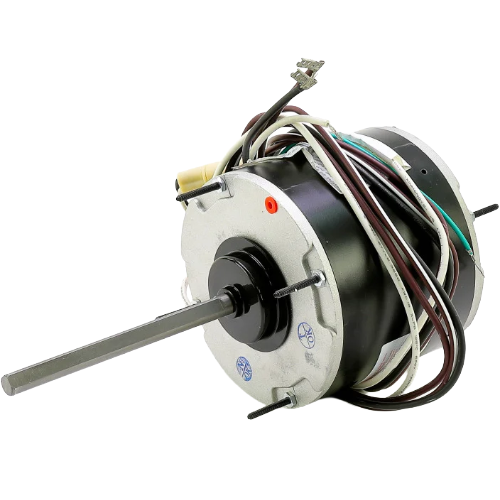

The Century FE1028SF is a heavy-duty Permanent Split Capacitor (PSC) fan motor engineered for reliable performance in demanding HVAC applications. With a totally enclosed construction, ball bearing design, and all-angle mounting capability, this motor delivers long-lasting dependability in condenser fan, evaporator fan, and general HVAC service installations.
Key Specifications
- Horsepower: 1/4 HP
- Speed: 825 RPM
- Voltage: 208–230V AC
- Amperage: 1.5 Amps
- Number of Speeds: 1
- Motor Diameter: 5 5/8″
- Shaft: 1/2″ Flatted Shaft
- Motor Type: Permanent Split Capacitor (PSC)
- Enclosure: Totally Enclosed
- Bearings: Ball Bearings
- Protector: Automatic Thermal Protector
- Rotation: Reversible
- Mounting: All-Angle Mount
Features & Benefits
- Totally Enclosed Design: Protects internal components from dust, moisture, and debris — ideal for outdoor or harsh-environment installations.
- Ball Bearing Construction: Provides smooth, low-friction operation and extended service life compared to sleeve bearing motors.
- Permanent Split Capacitor (PSC) Technology: Delivers efficient, quiet operation with improved power factor and reduced energy consumption.
- Reversible Rotation: Offers installation flexibility by allowing clockwise or counterclockwise airflow direction to be configured in the field.
- All-Angle Mount: Can be mounted in any position — horizontal, vertical shaft-up, or vertical shaft-down — for maximum versatility.
- Automatic Thermal Protector: Built-in auto-reset overload protection guards the motor against overheating and electrical faults.
- 1/2″ Flatted Shaft: Ensures secure, slip-resistant blade or pulley attachment for dependable torque transfer.
Typical Applications
- Condenser fan motor replacement
- Evaporator fan motor replacement
- General HVAC and refrigeration fan duty service
- Commercial and residential air conditioning units
The Century FE1028SF is a trusted drop-in replacement motor for a wide range of HVAC systems, combining robust construction with flexible installation options. Its 208–230V rating makes it compatible with standard single-phase commercial and residential power supplies, while the reversible rotation and all-angle mount simplify field installation.
