Description

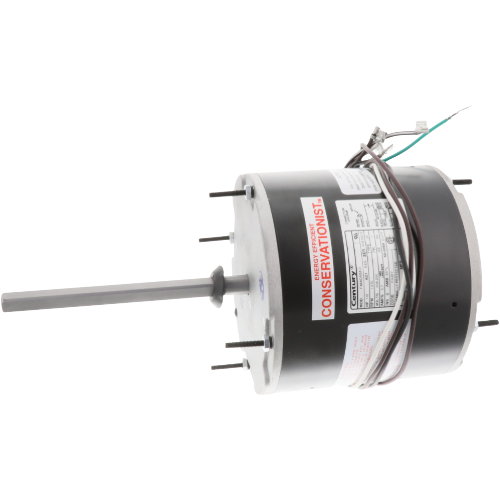

The Century FE1056SC is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in condenser fan and general HVAC motor applications. Built around a 48Y NEMA frame, this motor delivers consistent airflow and long service life in demanding residential and light commercial installations.
Key Features
- Motor Type: Permanent Split Capacitor (PSC) for efficient, quiet operation
- Horsepower: 1/2 HP
- Voltage: 208–230 VAC, Single Phase
- Speed: 1,075 RPM, Single Speed
- Full Load Amps: 3.7 Amps
- NEMA Frame: 48Y — industry-standard mounting for easy drop-in replacement
- Enclosure: Enclosed design protects internal components from dust and moisture
- Bearings: Ball bearing construction for extended service life and reduced maintenance
- Rotation: Reversible — adaptable to a wide range of equipment configurations
Why Choose the Century FE1056SC?
The enclosed housing shields windings and bearings from outdoor contaminants, making this motor well-suited for condenser fan duty where exposure to the elements is a constant concern. Ball bearings provide superior load handling and longevity compared to sleeve-bearing alternatives, reducing callbacks and replacement frequency. The reversible rotation feature adds installation flexibility, allowing technicians to match the motor to virtually any equipment requirement without stocking multiple SKUs.
Typical Applications
- Residential and light commercial condenser fan assemblies
- HVAC air-handling units
- General-purpose fan and blower duty
Specifications Summary
- SKU: FE1056SC
- Brand: Century
- HP: 1/2
- Voltage: 208–230 VAC
- Phase: Single Phase
- RPM: 1,075
- Speeds: 1
- Amps: 3.7 A
- Frame: 48Y NEMA
- Enclosure: Enclosed
- Bearing Type: Ball Bearing
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
