Description

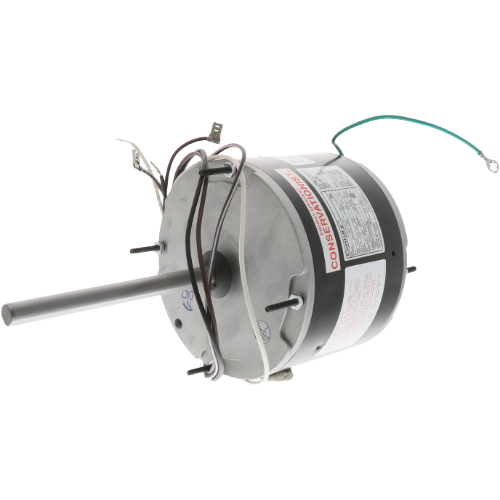

The Century FE1026SC is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in condenser fan and general HVAC motor applications. Built to the industry-standard 48Y NEMA frame, this motor is a direct-fit replacement for a wide range of residential and light commercial air conditioning and refrigeration equipment.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 1075 RPM
- Number of Speeds: 1
- Full Load Amps: 1.9 A
- NEMA Frame: 48Y
- Enclosure: Enclosed
- Bearing Type: Ball Bearing
- Shaft Size: 1/2″ diameter x 6-1/2″ length
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Product Highlights
- Enclosed construction protects internal components from dust, moisture, and debris — ideal for outdoor condenser fan duty
- Ball bearing design delivers long service life and smooth, low-friction operation with minimal maintenance
- Reversible rotation provides installation flexibility, allowing the motor to be configured for the correct airflow direction on-site
- PSC motor design offers energy-efficient, quiet operation compared to shaded-pole alternatives
- 48Y NEMA frame ensures broad cross-compatibility with OEM equipment from leading HVAC manufacturers
- Long 6-1/2″ shaft accommodates a variety of fan blade and pulley configurations
Typical Applications
- Residential and light commercial air conditioner condenser fans
- Heat pump condenser units
- Refrigeration condenser fan replacement
- General-purpose HVAC fan motor applications requiring a 48Y frame
The Century FE1026SC is manufactured by Regal Rexnord’s Century brand — a trusted name in HVAC motor replacements for decades. Whether you’re servicing a condenser unit in the field or stocking your truck with reliable replacement parts, the FE1026SC delivers the performance and compatibility you need to get the job done right.
