Description

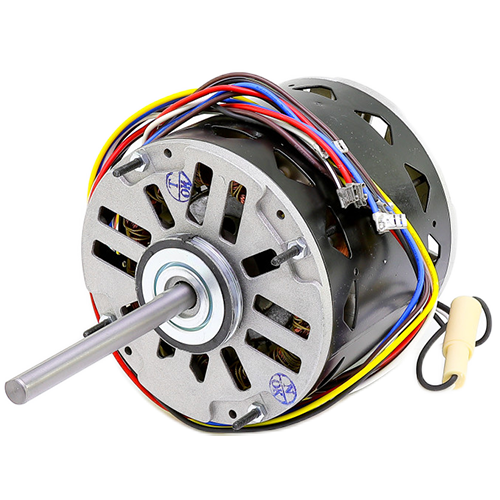

The Century FD6001 is a heavy-duty Permanent Split Capacitor (PSC) fan and blower motor engineered for reliable performance in a wide range of HVAC air-handling applications. Built on the industry-standard 48Y NEMA frame, this motor delivers consistent airflow control with four selectable speed taps, making it an ideal direct replacement or upgrade for residential and light-commercial furnaces, air handlers, and fan coil units.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 1,075 RPM (4-Speed)
- Full Load Amps: 4.0 A
- NEMA Frame: 48Y
- Motor Type: Permanent Split Capacitor (PSC)
- Enclosure: Open Air
- Bearing Type: Ball Bearing
- Rotation: Reversible
Features & Benefits
- Four-Speed Operation: Multiple speed taps allow precise airflow matching to system requirements, improving comfort and efficiency across heating, cooling, and continuous fan modes.
- Permanent Split Capacitor Design: PSC technology provides smooth, quiet starting and running with high efficiency — a preferred choice for residential and commercial air-handling equipment.
- Ball Bearing Construction: Premium ball bearings deliver long service life, reduced friction, and dependable operation even in demanding duty cycles.
- Reversible Rotation: Shaft rotation can be configured for either clockwise or counterclockwise operation, simplifying installation and broadening application compatibility.
- 48Y NEMA Frame: Industry-standard frame size ensures broad cross-reference compatibility with OEM and aftermarket blower assemblies.
- Open Air Enclosure: Promotes effective motor cooling in air-stream applications typical of furnace and air handler blower sections.
- 208–230V Single-Phase Input: Compatible with standard residential and light-commercial electrical supplies throughout North America.
Typical Applications
- Residential and commercial furnace blowers
- Air handler and fan coil unit blowers
- HVAC evaporator blower replacements
- General-purpose fan and blower duty
