Description
Overview

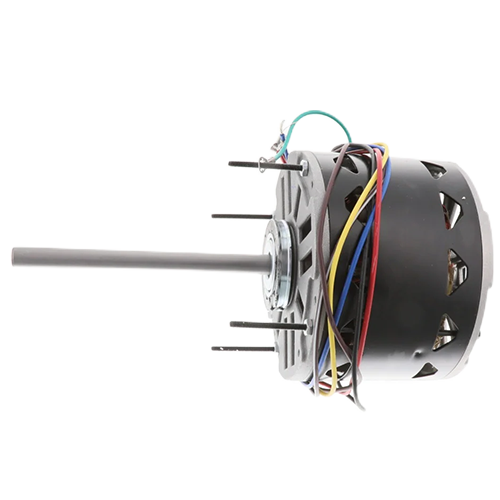

The Century FDL1026 is a reliable permanent split capacitor (PSC) motor engineered for demanding HVAC fan and blower applications. Delivering 1/4 horsepower at 1075 RPM, this single-phase motor operates on 115 Vac and draws just 4.3 amps, making it an energy-conscious choice for residential and light commercial systems. Its open air construction promotes natural cooling and ventilation of the motor windings, extending service life in a wide range of installations.
Key Features
- 1/4 HP output for reliable fan and blower performance
- 115 Vac, single-phase power supply
- 1075 RPM operating speed
- 3-speed operation for flexible airflow control
- 4.3 amp draw for energy-efficient operation
- 48Y NEMA frame size for broad equipment compatibility
- Open air construction for enhanced motor cooling
- Sleeve bearing design for quiet, low-maintenance operation
- 1/2″ x 6-1/2″ shaft for versatile mounting configurations
- Reversible rotation — easily configured for clockwise or counterclockwise airflow
- Permanent split capacitor (PSC) motor type for smooth, efficient starting and running
Specifications
- SKU: FDL1026
- Brand: Century
- Horsepower: 1/4 HP
- Voltage: 115 Vac
- Phase: Single Phase
- Speed: 1075 RPM, 3-Speed
- Amperage: 4.3 Amps
- Frame: 48Y NEMA
- Enclosure: Open Air
- Bearing Type: Sleeve Bearing
- Shaft Size: 1/2″ x 6-1/2″
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Applications
The FDL1026 is ideal as a direct replacement motor in residential furnaces, air handlers, evaporative coolers, and other HVAC fan systems requiring a 48Y frame PSC motor. The reversible rotation feature and 3-speed capability make it a versatile solution for a broad range of OEM and aftermarket installations.
