Description

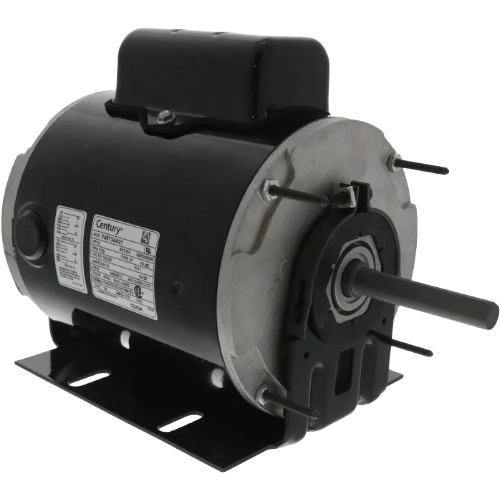

The Century C043A is a heavy-duty, single-phase direct drive motor engineered for reliable performance in demanding HVAC and commercial applications. Built around a 48Z frame with a base mount configuration, this motor delivers consistent 1725 RPM output at 1/3 horsepower, making it an ideal replacement or upgrade for a wide range of fan and blower systems.
Key Features
- 1/3 HP output for dependable, energy-efficient operation
- 1725 RPM single-speed design for consistent airflow performance
- Dual-voltage capability: 115/230V AC for flexible installation
- Dual amperage ratings: 3.6A at 115V / 1.8A at 230V
- 48Z frame with base mount for broad compatibility
- TEAO (Totally Enclosed Air Over) enclosure for protection in airstream applications
- 1/2″ x 3-1/8″ shaft for direct drive coupling
- Reversible rotation for versatile installation orientations
- Double sealed ball bearings for long service life and reduced maintenance
- Single-phase power for standard commercial and residential electrical systems
Motor Specifications
- Horsepower: 1/3 HP
- Speed: 1725 RPM
- Speeds: 1
- Voltage: 115/230V AC
- Amperage: 3.6A (115V) / 1.8A (230V)
- Frame: 48Z
- Mount: Base
- Enclosure: TEAO (Totally Enclosed Air Over)
- Shaft: 1/2″ diameter x 3-1/8″ length
- Rotation: Reversible
- Drive Type: Direct Drive
- Bearings: Double Sealed Ball Bearings
- Phase: Single Phase
Application
The Century C043A is well-suited for direct drive fan and blower applications where durability and airstream exposure are key concerns. The TEAO enclosure protects internal components from dust and moisture carried in the airstream, while the double sealed ball bearings ensure long-term reliability with minimal maintenance. The reversible rotation and dual-voltage wiring make this motor a flexible choice for HVAC technicians and contractors working across a variety of system configurations.
