Description

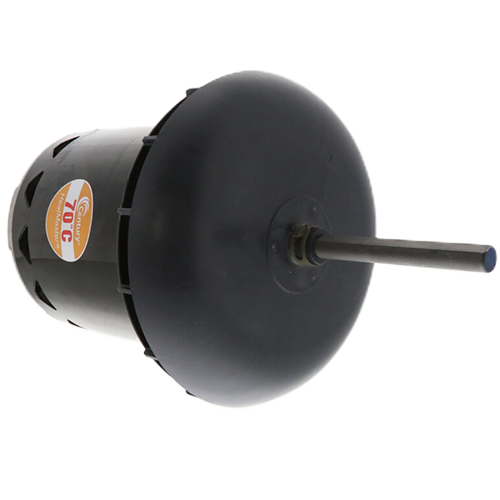

The Century FC3056F is a dependable three-phase general purpose motor engineered for demanding HVAC and commercial applications. Built around a 48Y NEMA frame and featuring a durable open air enclosure, this motor delivers reliable low-speed performance at 1140 RPM — ideal for fans, blowers, and other belt-driven equipment where quiet, efficient operation is a priority.
Electrical Specifications
- Voltage: 200-230/460 VAC
- Phase: Three Phase
- Amperage: 3.0-1.5 Amps
- Speed: 1 Speed
- RPM: 1140
Mechanical Specifications
- Horsepower: 1/2 HP
- NEMA Frame Size: 48Y
- Enclosure Type: Open Air
- Bearing Type: Ball Bearing
- Shaft Size: 1/2″ diameter x 3 3/4″ length
- Rotation: Reversible
Key Features
- Three-phase design for smooth, efficient power delivery in commercial and light industrial settings
- 1140 RPM low-speed operation reduces noise and vibration in fan and blower applications
- Dual-voltage capability (200-230/460V) allows flexible installation across a wide range of electrical systems
- Ball bearing construction ensures long service life and minimal maintenance requirements
- Reversible rotation provides installation versatility for various equipment configurations
- 48Y NEMA frame for straightforward drop-in replacement compatibility
- Open air enclosure promotes motor cooling in clean, dry environments
Applications
The Century FC3056F is well-suited for use in commercial HVAC fans, evaporative coolers, belt-drive blowers, and other three-phase motor-driven equipment requiring low-speed, reliable performance. Its reversible rotation and standard 48Y NEMA frame make it a versatile replacement motor for a broad range of OEM and aftermarket applications.
