Description
Overview

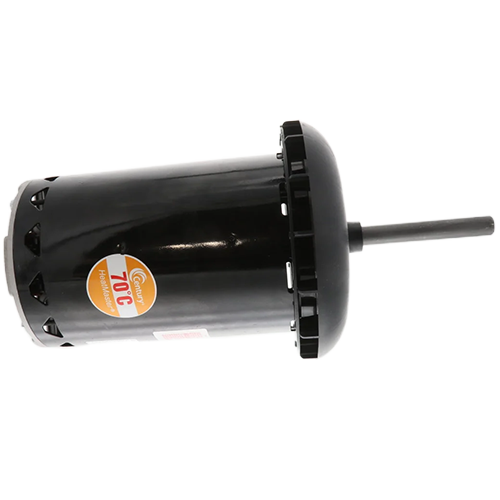

The Century FC3076F is a heavy-duty, three-phase general-purpose motor engineered for reliable performance in demanding HVAC and commercial applications. Rated at 3/4 horsepower and operating on 200-230/460 Vac three-phase power, this motor delivers consistent, low-speed torque at 1140 RPM — making it well-suited for fan, blower, and air-handling applications where controlled airflow is critical.
Key Features
- 3/4 HP output for dependable performance in commercial HVAC systems
- 200-230/460 Vac three-phase voltage — compatible with a wide range of commercial electrical systems
- 1140 RPM operating speed for smooth, low-speed fan and blower operation
- Single speed design for straightforward installation and control
- 4.0-2.0 amp current draw (varies by voltage configuration)
- 48Y NEMA frame size for standardized, drop-in replacement compatibility
- Open air enclosure promotes natural ventilation and heat dissipation
- Ball bearing construction for reduced friction, extended service life, and minimal maintenance
- 5/8″ x 4″ shaft for secure coupling to fan blades, pulleys, and other driven equipment
- Reversible rotation allows flexible installation orientation to meet application requirements
Specifications
- Brand: Century
- SKU: FC3076F
- Horsepower: 3/4 HP
- Voltage: 200-230/460 Vac
- Phase: Three Phase
- Speed: 1140 RPM
- Number of Speeds: 1
- Full Load Amps: 4.0-2.0 A
- NEMA Frame: 48Y
- Enclosure: Open Air
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 4″ length
- Rotation: Reversible
Applications
The FC3076F is ideal for use in commercial HVAC fan and blower assemblies, air handlers, condenser fans, evaporator fans, and other motor-driven equipment requiring a reliable three-phase, low-speed motor in a standard 48Y frame configuration.
Why Choose Century?
Century Motors has a long-standing reputation for manufacturing high-quality, application-specific motors for the HVAC and refrigeration industries. The FC3076F reflects that commitment — built to OEM standards with durable components that stand up to continuous commercial use.
