Description

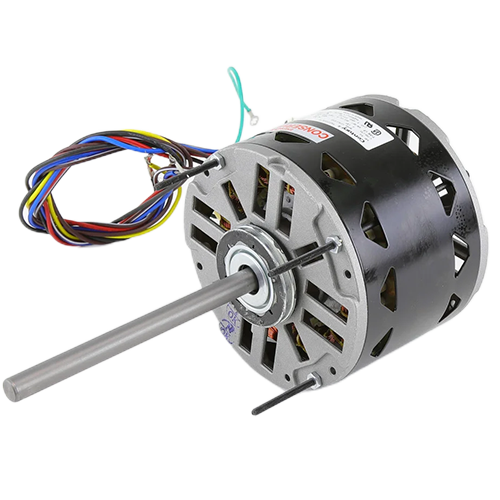

The Century FD1026 is a reliable, high-performance Permanent Split Capacitor (PSC) fan and blower motor engineered for demanding continuous air-over HVAC applications. Built on the industry-standard 48 frame with a 5-5/8″ motor diameter, this motor delivers consistent performance in residential and light commercial heating, cooling, and ventilation systems.
Key Features
- 1/4 HP output for dependable airflow performance
- 1075 RPM operating speed for quiet, efficient operation
- 3-speed capability for flexible airflow control
- 208-230V AC voltage rating for broad compatibility
- 1.5–1.9 amp draw for energy-efficient operation
- Permanent Split Capacitor (PSC) design for smooth, reliable starting and running
- Reversible rotation for versatile installation configurations
- Continuous Air Over (CAO) rated for sustained airstream cooling
- Automatic thermal overload protector for built-in motor protection
- Sleeve bearings for quiet, low-maintenance operation
- 1/2″ flatted shaft for secure blade or wheel attachment
- Resilient mounting ring included for vibration dampening and easy installation
- 48 frame, 5-5/8″ motor diameter for direct OEM and replacement fit
Motor Specifications
- Horsepower: 1/4 HP
- Speed: 1075 RPM
- Number of Speeds: 3
- Voltage: 208-230V AC
- Amperage: 1.5–1.9 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Bearing Type: Sleeve
- Shaft: 1/2″ Flatted
- Frame: 48
- Motor Diameter: 5-5/8″
- Rotation: Reversible
- Duty: Continuous Air Over (CAO)
- Overload Protection: Automatic Thermal Protector
- Mounting: Resilient Mounting Ring Included
Applications
- Residential and light commercial fan coil units
- Air handlers and blower assemblies
- HVAC evaporator and condenser fan replacements
- Ventilation and air circulation equipment
The Century FD1026 is an ideal direct replacement or OEM-spec motor for a wide range of HVAC equipment. Its reversible rotation, included resilient mounting ring, and standard 48 frame dimensions make installation straightforward. The automatic thermal protector safeguards the motor against overheating, extending service life in continuous-duty environments.
