Description

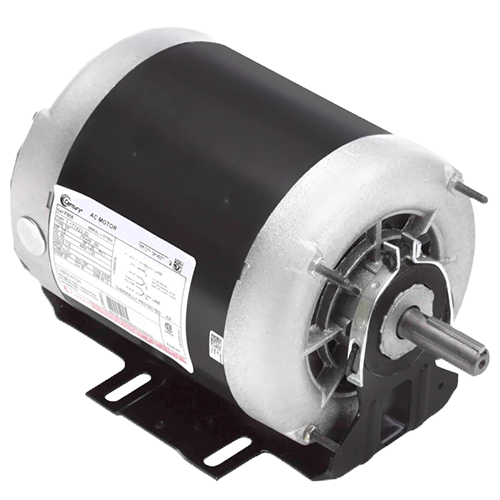

The Century F505 is a dependable general-purpose split phase motor engineered for demanding HVAC and light industrial applications. Built around a rugged 56 frame construction with a resilient base mount, this motor delivers consistent, reliable performance across a wide range of equipment including fans, blowers, pumps, and compressors.
Electrical Specifications
- Voltage: 115V AC
- Horsepower: 1/2 HP
- Full Load Amps: 7.0 A
- Motor Type: Split Phase
- Speed: 1725 RPM, Single Speed
- Service Factor: 1.25
Mechanical Specifications
- Frame: 56
- Enclosure: Open Drip Proof (ODP)
- Bearings: Ball Bearings
- Mount: Resilient Base
- Rotation: Reversible
- Duty: Continuous
Protection & Safety
- Auto Protector: Yes — automatic thermal overload protection for safe, reliable operation
Key Features & Benefits
- Ball bearings provide long service life and reduced maintenance requirements
- 1.25 service factor allows the motor to handle brief overload conditions without damage
- Reversible rotation offers flexible installation and application versatility
- ODP enclosure promotes airflow for effective cooling in clean, indoor environments
- Resilient base mount minimizes vibration transmission to the equipment frame
- Continuous duty rating ensures reliable, around-the-clock operation
- 56 frame is an industry-standard footprint for easy drop-in replacement
The Century F505 is an ideal replacement or upgrade motor for HVAC equipment, agricultural machinery, and general-purpose applications where a compact, efficient 1/2 HP single-phase motor is required.
