Description

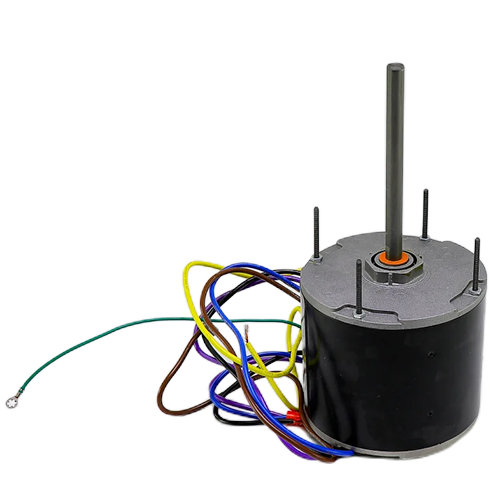

The Century F1038 is a reliable, professional-grade Permanent Split Capacitor (PSC) motor engineered for demanding HVAC and commercial fan applications. Built around a rugged 48Y NEMA frame, this motor delivers consistent, low-speed airflow performance at 825 RPM while drawing only 1.9 amps — making it an energy-conscious choice for condenser fan, evaporator fan, and general ventilation duty.
Key Features
- 1/3 HP output for dependable torque in fan and blower applications
- 208–230 VAC, single-phase operation for broad compatibility with standard commercial and residential power supplies
- 825 RPM, 1-speed design for steady, quiet airflow delivery
- 1.9-amp full-load current draw for energy-efficient operation
- Permanent Split Capacitor (PSC) motor type for smooth starting and reliable continuous-duty performance
- Reversible rotation — easily configured for clockwise or counterclockwise airflow direction
- 48Y NEMA frame size for direct OEM replacement compatibility across a wide range of equipment
- Semi-enclosed construction protects internal components from dust and debris
- Ball bearing design for long service life, reduced friction, and minimal maintenance
- 1/2″ x 6-1/2″ shaft for versatile blade and pulley mounting
Specifications
- SKU: F1038
- Brand: Century
- Horsepower: 1/3 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 825 RPM, 1 Speed
- Full Load Amps: 1.9 A
- NEMA Frame: 48Y
- Enclosure: Semi Enclosed
- Bearing Type: Ball Bearing
- Shaft Size: 1/2″ x 6-1/2″
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Common Applications
- Condenser fan motors
- Evaporator fan motors
- Commercial and residential ventilation fans
- General-purpose HVAC fan and blower duty
- OEM replacement in 48Y frame equipment
