Description

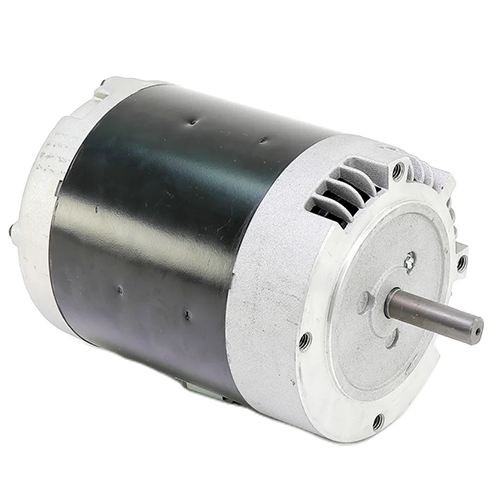

The Century F262 is a heavy-duty split phase motor engineered for reliable performance in demanding HVAC and general-purpose applications. Built around a NEMA J56CZ frame, this motor delivers the mechanical rigidity and dimensional consistency professionals expect for direct-drive and belt-drive installations alike.
Key Specifications
- Horsepower: 1/3 HP
- Voltage: 115 VAC
- Phase: Single Phase
- Speed: 1725 / 1140 RPM (dual speed)
- Amperage: 5.4 / 2.3 Amps
- NEMA Frame: J56CZ
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 2-1/4″ length
- Rotation: Reversible
- Motor Type: Split Phase
Performance & Design Features
- Dual-speed operation (1725 / 1140 RPM) provides application flexibility for variable airflow requirements
- Reversible rotation allows field-configurable installation without additional hardware
- Ball bearing construction ensures long service life with minimal maintenance
- Open Drip Proof (ODP) enclosure protects internal windings from dripping liquids in standard indoor environments
- NEMA J56CZ frame provides standardized mounting dimensions for straightforward replacement and retrofit
- 5/8″ x 2-1/4″ shaft accommodates a wide range of pulleys, couplings, and direct-drive components
Typical Applications
- HVAC blower and fan assemblies
- General-purpose industrial and commercial equipment
- Belt-drive and direct-drive configurations
- Replacement motor applications requiring a J56CZ NEMA frame
The Century F262 split phase motor is an ideal choice for HVAC technicians and contractors seeking a dependable, field-reversible motor with dual-speed capability. Its standardized J56CZ frame and robust ball bearing design make it a go-to replacement for a wide range of residential and light commercial equipment.
