Description

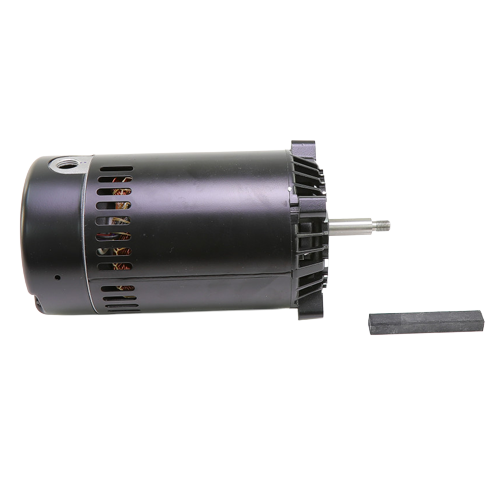

The Century T1102 is a rugged, single-phase capacitor start motor engineered for demanding pump and general HVAC applications. Built on the industry-standard 56J frame with a NEMA C-Face mount, it delivers reliable performance in continuous-duty installations where dependability and long service life are non-negotiable.
Key Specifications
- Horsepower: 1 HP
- Speed: 3450 RPM
- Voltage: 115/230V AC (dual voltage)
- Amperage: 16.2 A (115V) / 8.1 A (230V)
- Service Factor: 1.40
- Frame: 56J
- Enclosure: Open Drip-Proof (ODP)
- Shaft: Threaded
- Rotation: CCWPE (Counter-Clockwise, Pump End)
- Mount: NEMA C-Face
- Phase: Single Phase
- Motor Type: Capacitor Start
- Bearings: Ball Bearings
- Duty: Continuous
- Protector: Auto Protector
- Switch Design: Sealed Switch
Features & Benefits
- Dual Voltage (115/230V AC) — Field-configurable for flexible installation across a wide range of electrical systems
- Capacitor Start Design — Delivers high starting torque ideal for pumps and compressors with heavy starting loads
- 1.40 Service Factor — Allows the motor to handle occasional overload conditions without damage
- NEMA C-Face Mount with 56J Frame — Direct-mount compatibility with standard pumps and driven equipment; no adapter required
- Threaded Shaft with CCWPE Rotation — Purpose-built for pump applications; threaded shaft prevents loosening under load
- Ball Bearings — Provide smooth, low-friction operation and extended motor life
- Sealed Switch Design — Protects the centrifugal starting switch from moisture and debris for enhanced reliability
- Auto Protector — Automatic thermal overload protection guards against overheating and motor burnout
- Open Drip-Proof (ODP) Enclosure — Suitable for indoor installations where the motor is protected from dripping liquids
- Continuous Duty Rating — Designed to run indefinitely under rated load conditions
Typical Applications
- Centrifugal pumps and jet pumps
- HVAC hydronic circulating systems
- Water treatment and irrigation pumps
- General industrial and commercial equipment
