Description

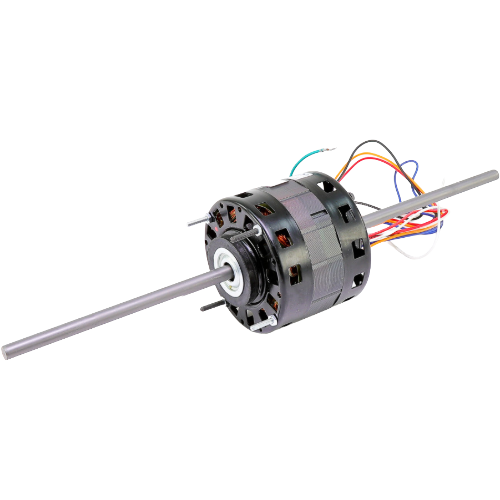

The Century DCL4423 is a versatile, multi-horsepower shaded pole motor engineered for reliable performance in a wide range of HVAC fan and blower applications. Its four selectable speed taps give technicians the flexibility to match motor output precisely to system requirements — all in a single, compact unit.
Electrical Specifications
- Voltage: 115V AC
- Horsepower: 1/6, 1/10, 1/12, 1/15 HP (4-speed selectable)
- Amperage: 4.0 / 2.4 / 1.9 / 1.6 Amps (per speed tap)
- Speed: 1550 RPM
- Motor Type: Shaded Pole
- Thermal Protection: Automatic Protector
Mechanical Specifications
- Frame: 42
- Diameter: 5 inches
- Shaft Configuration: Double Shaft
- Shaft Size: 1/2″ Flatted Shaft
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Bearings: Sleeve Bearings
- Construction: Open
Key Features & Benefits
- Four speed taps (1/6, 1/10, 1/12, 1/15 HP) allow precise airflow matching without additional components
- Double shaft design supports flexible drive configurations and dual-end accessory mounting
- 1/2″ flatted shaft ensures secure coupling and prevents slippage under load
- Built-in automatic thermal protector guards against overheating and extends motor life
- Open construction promotes natural airflow cooling for continuous-duty operation
- Sleeve bearings deliver quiet, smooth operation ideal for residential and light commercial environments
- 42 frame standardization simplifies direct replacement in existing installations
- CCWLE rotation is clearly defined for correct installation without guesswork
Typical Applications
- Furnace blower and evaporator fan assemblies
- Room air conditioner and heat pump fan motors
- Ventilation fans and air-handling units
- OEM replacement in residential and light commercial HVAC equipment
The Century DCL4423 is a trusted direct-drive replacement motor built to Century’s exacting standards. Its combination of multi-speed flexibility, double-shaft versatility, and automatic thermal protection makes it an essential stock item for HVAC technicians and distributors alike.
