Description

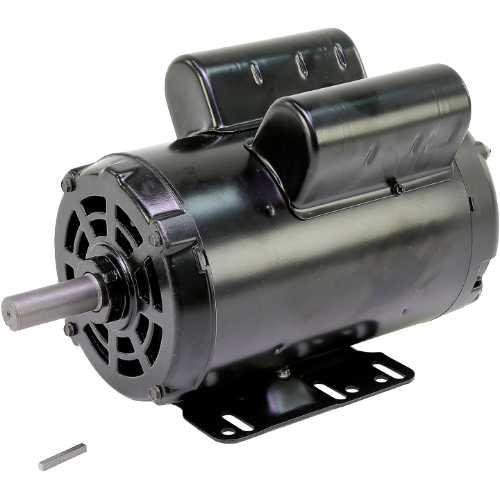

The Century CP1502L is a heavy-duty 5 horsepower Permanent Split Capacitor (PSC) motor engineered for demanding HVAC and industrial applications. Designed for reliable, continuous-duty performance, this motor delivers robust power in a compact Y56HZ frame with a rigid base mounting configuration.
Key Specifications
- Horsepower: 5 HP
- Voltage: 230 VAC
- Phase: Single Phase
- Speed: 3450 RPM, 1 Speed
- Amperage: 19.7 Amps
- Frame Size: Y56HZ
- Motor Type: Permanent Split Capacitor (PSC)
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Rigid Base
- Shaft Size: 7/8″ x 2-1/4″
- Rotation: Reversible
Features & Benefits
- Permanent Split Capacitor design delivers smooth, efficient starting and running performance
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids and falling debris in semi-protected environments
- Ball bearings provide long service life and reduced friction for continuous-duty applications
- Reversible rotation offers installation flexibility for a wide range of equipment configurations
- Rigid base mounting ensures secure, vibration-resistant installation
- Y56HZ frame size for straightforward replacement and compatibility with standard motor mounts
- 7/8″ x 2-1/4″ shaft accommodates common couplings, pulleys, and drive components
Typical Applications
- Condenser fans and evaporator fans
- Air handling unit (AHU) fan drives
- Pumps and compressors
- General HVAC and refrigeration equipment
- Industrial machinery and equipment drives
The Century CP1502L is built to Century’s exacting quality standards, making it a dependable choice for HVAC technicians and contractors seeking a direct replacement or upgrade motor with proven performance.
