Description

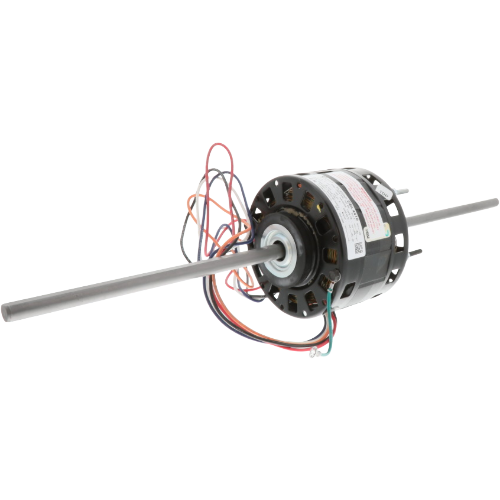

The Century DBL4410 is a versatile, multi-speed shaded pole motor engineered for reliable performance in residential and light commercial HVAC applications. With four selectable horsepower and amperage settings, this motor delivers the flexibility needed for a wide range of fan and blower configurations.
Key Features
- Four-speed operation with selectable HP outputs: 1/10, 1/12, 1/20, and 1/25 HP
- Corresponding amperage draws: 3.5, 2.6, 1.9, and 1.6 Amps
- 115 VAC, single-phase power supply for broad compatibility
- 1550 RPM operating speed for consistent airflow performance
- 42Y NEMA frame size for standardized mounting and easy replacement
- Open air construction for natural cooling and extended motor life
- Sleeve bearing design for quiet, low-maintenance operation
- Resilient base mounting for vibration dampening and noise reduction
- Shaft dimensions: 9 5/16″ x 1/2″ x 9 5/16″ for versatile coupling options
- Counter-clockwise (CCW) rotation from the lead end
- Shaded pole motor design — simple, durable, and low-cost to operate
Specifications
- SKU: DBL4410
- Brand: Century
- Horsepower: 1/10, 1/12, 1/20, 1/25 HP (4-speed)
- Voltage: 115 VAC
- Phase: Single Phase
- Speed: 1550 RPM
- Amperage: 3.5 / 2.6 / 1.9 / 1.6 Amps
- NEMA Frame: 42Y
- Enclosure: Open Air
- Bearing Type: Sleeve
- Mounting: Resilient Base
- Shaft Size: 9 5/16″ x 1/2″ x 9 5/16″
- Rotation: CCW (Lead End)
- Motor Type: Shaded Pole
Applications
- Residential and commercial HVAC fan and blower assemblies
- Direct replacement for OEM shaded pole motors in 42Y frame equipment
- Furnace, air handler, and ventilation fan applications requiring multi-speed control
