Description

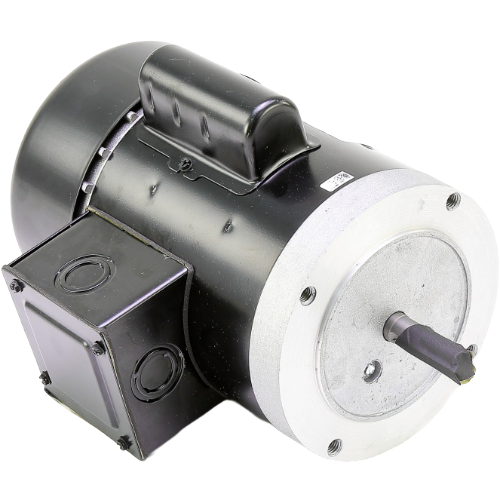

The Century C907 is a heavy-duty, general-purpose capacitor start electric motor engineered for demanding HVAC and industrial applications. Built around a 56C round frame with a totally enclosed fan-cooled (TEFC) enclosure, this motor delivers reliable, continuous-duty performance in environments where moisture, dust, and debris are a concern.
Key Features
- 1/2 HP output for dependable power in a compact footprint
- 1725 RPM operating speed for smooth, efficient performance
- Dual-voltage rated at 115/208-230V AC for flexible installation compatibility
- 7.2 amps at 115V / 3.5–3.6 amps at 208-230V full-load current draw
- 1.15 service factor provides a built-in operational safety margin
- 56C round frame — a standard NEMA frame for easy OEM and replacement installations
- Totally Enclosed Fan-Cooled (TEFC) enclosure protects against contamination and moisture ingress
- Capacitor start design delivers high starting torque for reliable load engagement
- Ball bearing construction for reduced friction, longer service life, and minimal maintenance
- Reversible rotation — adaptable to a wide range of equipment configurations
- Keyed shaft ensures positive, slip-free power transmission to driven loads
- No overload protector — suitable for applications with external motor protection
- Continuous duty rating for around-the-clock operation
Specifications
- SKU: C907
- Brand: Century
- Horsepower: 1/2 HP
- Speed: 1725 RPM
- Voltage: 115/208-230V AC
- Amperage: 7.2A (115V) / 3.5–3.6A (208-230V)
- Service Factor: 1.15
- Frame: 56C
- Frame Style: Round
- Enclosure: TEFC (Totally Enclosed Fan-Cooled)
- Bearing Type: Ball Bearing
- Motor Type: Capacitor Start
- Duty: Continuous
- Rotation: Reversible
- Shaft: Keyed
- Overload Protection: None
Applications
The Century C907 is well-suited for a broad range of HVAC and commercial equipment including air handlers, compressors, pumps, fans, blowers, and other motor-driven machinery requiring a reliable, high-starting-torque motor in a standard NEMA 56C frame.
