Description

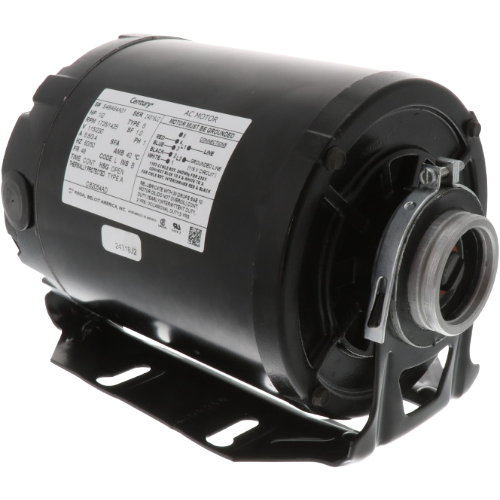

The Century CB2054AD is a reliable 1/2 HP split phase general purpose motor engineered for demanding HVAC and light industrial applications. Built on a standard 48 frame with a resilient base mounting, this motor is designed for straightforward installation and long-term service in a wide range of equipment.
Motor Overview
The CB2054AD delivers consistent performance with dual-speed capability at 1725 RPM (60 Hz) and 1425 RPM (50 Hz), making it suitable for both domestic and international equipment. Its open enclosure design promotes airflow and heat dissipation, while the built-in automatic thermal protector safeguards the motor against overload conditions — reducing downtime and extending service life.
Key Specifications
- Horsepower: 1/2 HP
- Speed: 1725 / 1425 RPM
- Voltage: 115 / 230V AC
- Amperage: 6.8 A (115V) / 3.4 A (230V)
- Service Factor: 1.00
- Frame: 48
- Enclosure: Open
- Mounting: Resilient Base
- Rotation: Reversible
- Motor Type: Split Phase
- Bearings: Sleeve
- Thermal Protection: Automatic Protector
Features & Benefits
- Dual voltage (115/230V AC) for flexible installation across a variety of electrical configurations
- Reversible rotation allows for versatile application compatibility
- Resilient base mounting helps dampen vibration and reduce noise transmission
- Sleeve bearings provide quiet, smooth operation ideal for low-to-medium duty cycles
- Automatic thermal protector guards against overheating and motor burnout
- Open enclosure design supports natural cooling and airflow
- Standard 48 frame ensures broad OEM and replacement compatibility
Typical Applications
- HVAC blower and fan assemblies
- Light-duty industrial equipment
- OEM motor replacement on 48-frame equipment
- Appliance and ventilation system drives
