Description

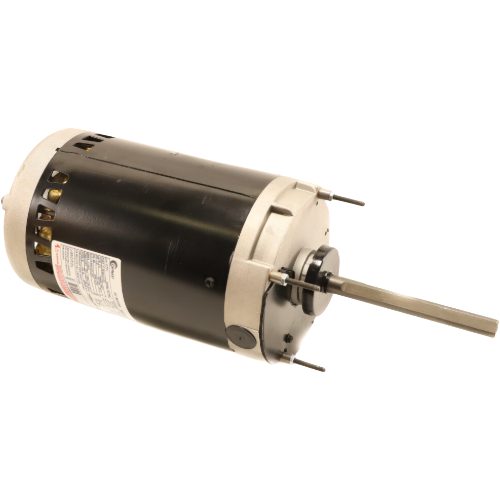

The Century C771 is a heavy-duty 1-1/2 horsepower Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC and commercial fan applications. Built around a rugged P56Y frame, this motor delivers consistent airflow and long service life in open-air environments.
Key Features
- Permanent Split Capacitor (PSC) design for smooth, efficient operation
- Reversible rotation for flexible installation configurations
- Open air construction for effective heat dissipation
- Precision ball bearings for extended service life and reduced maintenance
- Dual-voltage capability simplifies installation across a wide range of electrical systems
- P56Y frame size for direct OEM and replacement compatibility
Electrical Specifications
- Horsepower: 1-1/2 HP
- Voltage: 200-230/460 VAC
- Phase: Single Phase
- Amperage: 6.6 / 3.3 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1075 RPM
- Frame Size: P56Y
- Shaft Size: 5/8″ diameter x 6″ length
- Bearing Type: Ball Bearing
- Enclosure: Open Air
- Rotation: Reversible
The Century C771’s dual-voltage rating (200-230/460V) and reversible rotation make it a versatile choice for condenser fan, evaporator fan, and general HVAC blower applications. Its ball bearing construction ensures dependable, low-maintenance operation in continuous-duty environments.
