Description

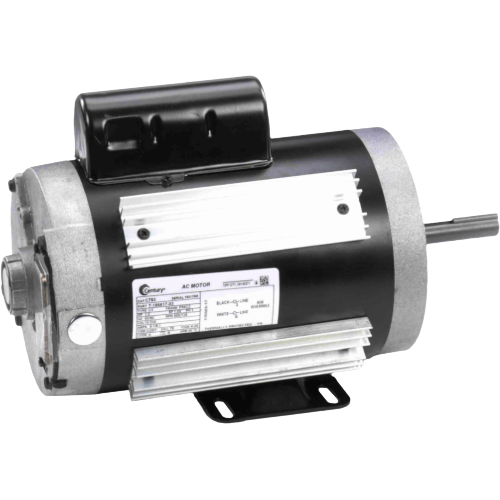

The Century C783 is a heavy-duty single-phase condenser fan motor engineered for reliable performance in demanding outdoor HVAC applications. Built to handle the rigors of commercial and residential condensing unit service, this motor features a Totally Enclosed Air Over (TEAO) enclosure that protects internal components from moisture, dust, and debris — making it an ideal choice for exposed outdoor installations.
Electrical Specifications
- Voltage: 230V AC
- Amperage: 5.1 Amps
- Phase: Single Phase
- Speed: 850/725 RPM (1 Speed)
- Service Factor: 1.00
Mechanical Specifications
- Horsepower: 1 HP
- Frame: 56CZ (Round Frame)
- Enclosure: TEAO (Totally Enclosed Air Over)
- Shaft: 5/8″ x 3-1/4″
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Bearings: Double Sealed Ball Bearings
Key Features & Benefits
- TEAO enclosure provides superior protection against outdoor elements including moisture, dirt, and debris
- Double sealed ball bearings deliver long service life and reduced maintenance requirements
- 56CZ round frame design ensures broad compatibility with standard condenser fan motor mounting configurations
- CCWLE rotation is the standard orientation for most residential and light commercial condensing units
- Dual-speed capability (850/725 RPM) offers flexible application across a range of system requirements
- 1.00 service factor rating ensures the motor operates reliably at its nameplate rating
- 5/8″ x 3-1/4″ shaft accommodates standard condenser fan blade hubs
Application
The Century C783 is designed for use as a direct replacement or OEM condenser fan motor in residential and light commercial air conditioning and heat pump systems. Its TEAO enclosure and double sealed ball bearings make it well-suited for year-round outdoor operation where exposure to the elements is a constant concern. The standard 56CZ frame and CCWLE rotation allow for straightforward installation in a wide variety of condensing unit configurations.
