Description

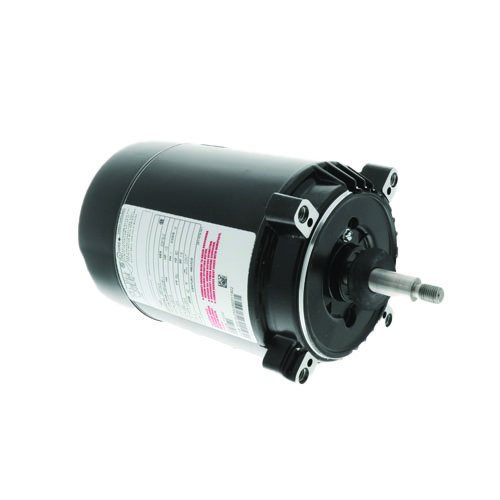

The Century T1032 is a high-performance Permanent Split Capacitor (PSC) pump motor engineered for demanding HVAC and hydronic pumping applications. Built around a rugged 56J NEMA frame, this motor delivers dependable, continuous-duty performance in a compact, industry-standard footprint that simplifies direct replacement and new installations alike.
Electrical Specifications
- Horsepower: 1/3 HP
- Voltage: 115/230 VAC (dual voltage)
- Phase: Single Phase
- Amperage: 8.6 A (115V) / 4.3 A (230V)
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 3450 RPM
- NEMA Frame: 56J
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Shaft Type: Threaded Shaft
- Rotation: Counterclockwise (CCW) from pump end
Key Features & Benefits
- Dual-voltage design (115/230V) offers installation flexibility across a wide range of electrical systems
- Ball bearing construction provides long service life, reduced friction, and minimal maintenance requirements
- Threaded shaft ensures a secure, vibration-resistant connection to pump assemblies
- CCW rotation from pump end is the standard configuration for most centrifugal pump applications
- Open Drip Proof enclosure protects internal windings from dripping liquids in typical indoor environments
- 56J NEMA frame enables straightforward drop-in replacement on compatible pump equipment
- PSC motor design delivers smooth, efficient operation with low starting current
Typical Applications
- Hydronic heating and cooling circulating pumps
- Water supply and booster pump systems
- HVAC chilled water and hot water pump replacement
- General-purpose industrial and commercial pump drives
The Century T1032 is a trusted choice for HVAC technicians and mechanical contractors who need a reliable, dual-voltage pump motor with a standard 56J frame. Its ball bearing construction and PSC design make it an efficient, long-lasting solution for both replacement and new pump installations.
