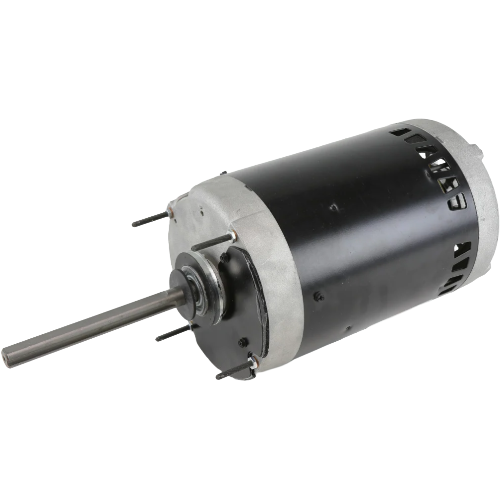

Century C660V1 Permanent Split Capacitor Motor Overview
The Century C660V1 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC and commercial fan applications. With a 3/4 HP output rating and a low 825 RPM operating speed, this motor is ideally suited for condenser fan, evaporator fan, and general-purpose air movement applications where quiet, efficient operation is essential.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 200-230/460 VAC
- Phase: Single Phase
- Speed: 825 RPM, 1 Speed
- Full Load Amps: 5.3 / 5.2 / 2.6 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- NEMA Frame Size: N56Y
- Enclosure: Open Air
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 6″ length
- Rotation: Reversible
Key Features & Benefits
- Reversible Rotation: Flexible installation — easily configured for clockwise or counterclockwise airflow direction without additional parts
- Ball Bearing Construction: Provides long service life, reduced friction, and reliable performance under continuous-duty operating conditions
- Multi-Voltage Capability: 200-230/460 VAC rating accommodates a wide range of single-phase commercial power supplies, reducing the need for multiple motor SKUs
- Open Air Enclosure: Promotes natural ventilation and cooling of motor windings, ideal for outdoor condenser and well-ventilated indoor fan applications
- N56Y NEMA Frame: Industry-standard frame ensures drop-in compatibility with a broad range of OEM equipment and replacement applications
- Low-Speed Design (825 RPM): Delivers quieter operation and reduced vibration compared to higher-speed motors, extending equipment life
- PSC Design: Permanent Split Capacitor technology provides smooth starting, high efficiency, and consistent torque output for fan and blower loads
Typical Applications
- Condenser fan motor replacement
- Evaporator fan motor replacement
- General-purpose HVAC fan and blower applications
- Commercial refrigeration fan duty
- OEM and aftermarket equipment upgrades
Why Choose Century Motors?
Century Motors, a trusted name in HVAC motor manufacturing, designs its motors to meet rigorous industry standards for durability, efficiency, and compatibility. The C660V1 is built to provide technicians and contractors with a dependable, direct-replacement solution that minimizes downtime and simplifies installation.
