Description

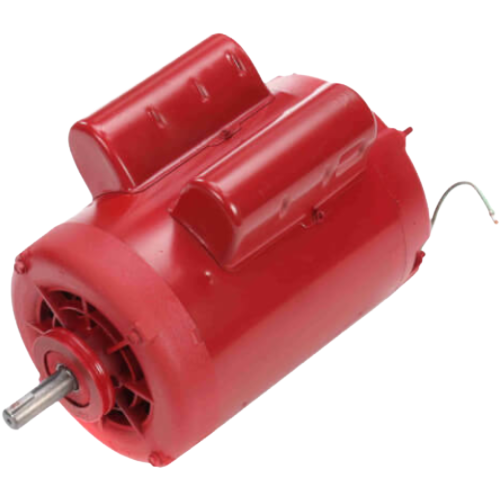

The Century C248 is a heavy-duty general purpose motor engineered for dependable performance across a wide range of HVAC and industrial applications. Built on the industry-standard M56Y frame, this motor delivers 1-1/2 horsepower at 1725 RPM, making it an ideal drop-in replacement or new-installation solution for fans, blowers, pumps, and other belt-driven equipment.
Key Features
- 1-1/2 HP output for reliable, consistent power delivery
- Dual-voltage rated at 115/230 VAC for flexible installation in a variety of electrical configurations
- Single-phase operation — compatible with standard residential and light commercial power supplies
- 1725 RPM synchronous speed for smooth, efficient operation
- 15.0 / 7.5 amp draw (115V / 230V) for straightforward circuit sizing
- M56Y frame size — industry-standard mounting for easy replacement and retrofit
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids in standard indoor environments
- Precision ball bearings for long service life and reduced maintenance requirements
- 5/8″ diameter x 1-7/8″ length shaft for broad compatibility with pulleys, couplings, and driven equipment
- Reversible rotation — configurable for clockwise or counterclockwise operation to suit your application
Specifications
- SKU: C248
- Brand: Century
- Horsepower: 1-1/2 HP
- Voltage: 115/230 VAC
- Phase: Single Phase
- Speed: 1725 RPM
- Amperage: 15.0 A (115V) / 7.5 A (230V)
- Frame: M56Y
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 1-7/8″ length
- Rotation: Reversible
Applications
- HVAC blower and fan assemblies
- Belt-driven air handlers and ventilation equipment
- Pump and compressor drives
- General-purpose industrial and commercial equipment
The Century C248 is a trusted choice for HVAC professionals and contractors who demand reliable, long-lasting motor performance. Its dual-voltage capability and reversible rotation make it one of the most versatile motors in its class, reducing the need to stock multiple SKUs for different job requirements.
