Description

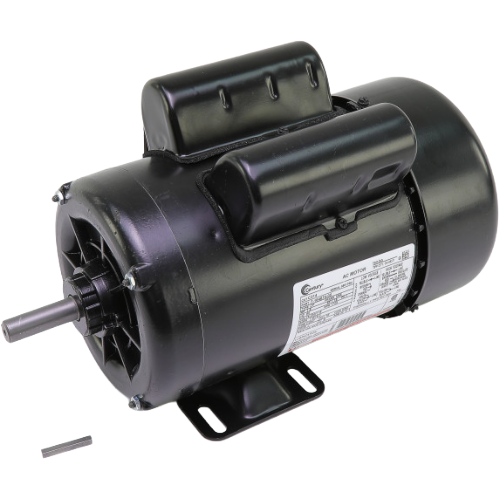

The Century C314 is a rugged, totally enclosed farm duty motor engineered for demanding agricultural and industrial applications where reliability and durability are non-negotiable. Built on the industry-standard 56 Frame, this capacitor start, single-phase motor delivers dependable 1-1/2 horsepower performance at 1725 RPM, making it an ideal replacement or upgrade motor for a wide range of farm equipment, pumps, compressors, and machinery.
Key Features
- Totally Enclosed Fan-Cooled (TEFC) enclosure protects internal windings from dust, moisture, and debris common in agricultural environments
- Capacitor start design delivers high starting torque for loads that require extra force to get moving
- Manual overload protector provides hands-on protection against thermal overload conditions
- 1.15 Service Factor allows the motor to handle occasional overload conditions beyond its nameplate rating
- Dual-voltage capability (230/115V AC) offers installation flexibility across a variety of electrical service configurations
- RCC (Reversible Counter-Clockwise) rotation provides versatile mounting and directional options
- 56 Frame construction ensures compatibility with a broad range of standard motor mounting configurations
Specifications
- Horsepower: 1-1/2 HP
- Speed: 1725 RPM
- Voltage: 230/115V AC
- Amperage: 7.5/15.0 Amps
- Service Factor: 1.15
- Frame: 56
- Enclosure: TEFC (Totally Enclosed Fan-Cooled)
- Overload Protection: Manual Overload Protector
- Rotation: RCC (Reversible Counter-Clockwise)
- Phase: Single Phase
- Motor Type: Capacitor Start
- Duty: Farm Duty
Applications
- Agricultural pumps and irrigation equipment
- Grain augers and conveyors
- Air compressors
- Feed mixers and grinders
- General farm machinery and equipment
