Description

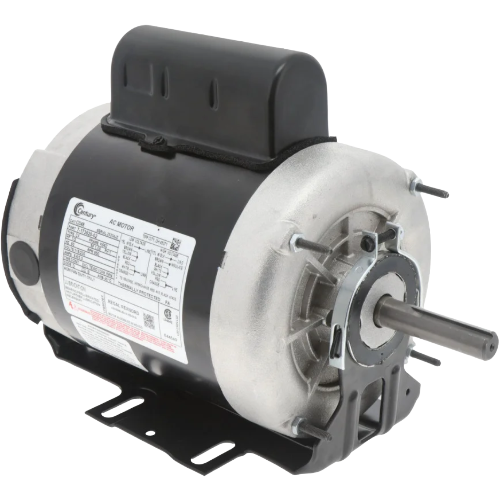

The Century C048 is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable, long-life performance in demanding HVAC applications. Built around a K56Z NEMA frame with a Totally Enclosed Air Over (TEAO) design, this motor is well-suited for use in condenser and evaporator fan assemblies where airflow over the motor provides the necessary cooling.
Electrical Specifications
- Voltage: 115/230 VAC
- Phase: Single Phase
- Amperage: 6.6 A (115V) / 3.3 A (230V)
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Horsepower: 1/2 HP
- Speed: 850 RPM
- NEMA Frame: K56Z
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Shaft Size: 5/8″ diameter x 2-1/2″ length
- Rotation: Reversible
- Mounting: Cushion Base
Key Features & Benefits
- Dual Voltage Capability: Operates at 115V or 230V, providing installation flexibility across a wide range of equipment configurations
- Reversible Rotation: Easily configures for CW or CCW airflow direction, reducing the need for multiple replacement motor SKUs
- Ball Bearing Construction: Delivers superior durability, reduced friction, and extended service life compared to sleeve bearing alternatives
- Totally Enclosed Air Over (TEAO) Enclosure: Protects internal windings from dust, debris, and moisture in outdoor or harsh environments
- Cushion Base Mounting: Helps dampen vibration for quieter, smoother operation and reduced wear on connected components
- K56Z NEMA Frame: Industry-standard frame sizing for straightforward drop-in replacement in compatible condenser fan applications
- PSC Design: Permanent Split Capacitor technology provides efficient, reliable starting and running performance without the need for a start relay
Typical Applications
- Residential and light commercial air conditioning condenser units
- Evaporator fan assemblies
- HVAC equipment requiring low-speed, high-torque fan motor replacement
